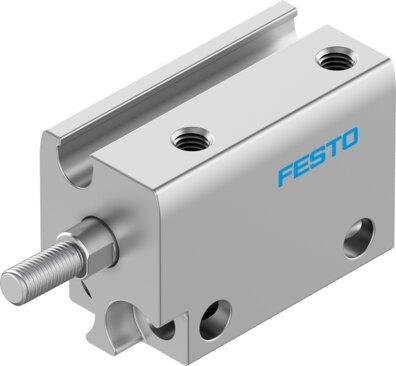

Reference imageConfirm configuration by manufacturer part number.
Festo
8080594
Compact cylinder AEN-S-6-10-A
The Festo 8080594 is an industrial component featuring a 10 mm stroke, a 6 mm piston diameter, and a pushing mode of operation with a single-end piston rod and external thread. Operating at a pressure range of 0.25 MPa to 0.8 MPa utilizing compressed air according to ISO 8573-1:2010 [7:4:4], this 15 g unit delivers a theoretical advancing force of 13 N and a retracting force of 4 N at 6 bar. It offers a moderate corrosion resistance class (CRC 2) and an ambient temperature range of -10 °C to 60 °C, designed with through-hole mounting for installation in any position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8080594
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8080594.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm
- Piston diameter
- 6 mm
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Pushing
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod
- Variants
- Piston rod at one end
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 0.006 J
- Theoretical force at 6 bar, retracting
- 4 N
- Theoretical force at 6 bar, advancing
- 13 N
- Moving mass
- 2.3 g
- Product weight
- 15 g
- Type of mounting
- With through-hole
- Pneumatic connection
- M3
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Material of dynamic seals
- NBR | TPE-U(PU)
- Housing material
- Wrought aluminum alloy | Anodized
- Piston rod material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8080594. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
