Festo
8080597

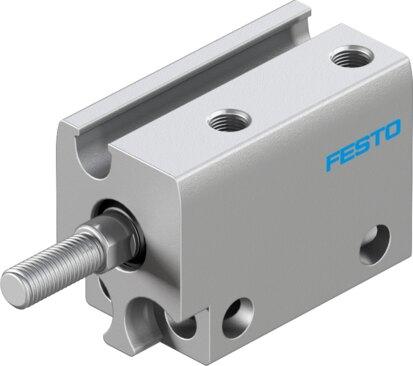

Compact cylinder ADN-S-6-5-A-A
The Festo 8080597 is a double-acting industrial component featuring a 6 mm piston diameter and a 5 mm stroke with a piston rod at one end. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a 2 bar to 8 bar pressure range, it delivers a theoretical advancing force of 17 N and a retracting force of 9.4 N at 6 bar. This unit includes position sensing via proximity switch, features no cushioning, and possesses a Class 5 cleanroom suitability per ISO 14644-1 alongside a CRC 2 moderate corrosion stress rating. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8080597
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8080597.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 5 mm
- Piston diameter
- 6 mm
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 0.006 J
- Theoretical force at 6 bar, retracting
- 9.4 N
- Theoretical force at 6 bar, advancing
- 17 N
- Moving mass
- 1.6 g
- Product weight
- 10.9 g
- Type of mounting
- With through-hole
- Pneumatic connection
- M3
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Material of dynamic seals
- NBR | TPE-U(PU)
- Housing material
- Wrought aluminum alloy | Anodized
- Piston rod material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8080597. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
