Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8080777
Adapter NEFC-M12G8-0.3-M12G5-LK
This Festo industrial component, part number 8080777, is an IO-Link protocol device weighing 30 g and certified as c UL us - Listed (OL) without a label holder, built on the EN 61076-2-101 norm. The field device side features a straight, round socket with an M12x1 A-coded screw-type lock connection technology using 8 pins with 3 occupied wires. The control side consists of a straight, round plug with an M12x1 A-coded connection technology containing 5 pins and 3 occupied wires. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8080777
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8080777.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-101
- Protocol
- IO-Link®
- Certication
- c UL us - Listed (OL)
- Cable designation
- Without label holder
- Product weight
- 30 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight

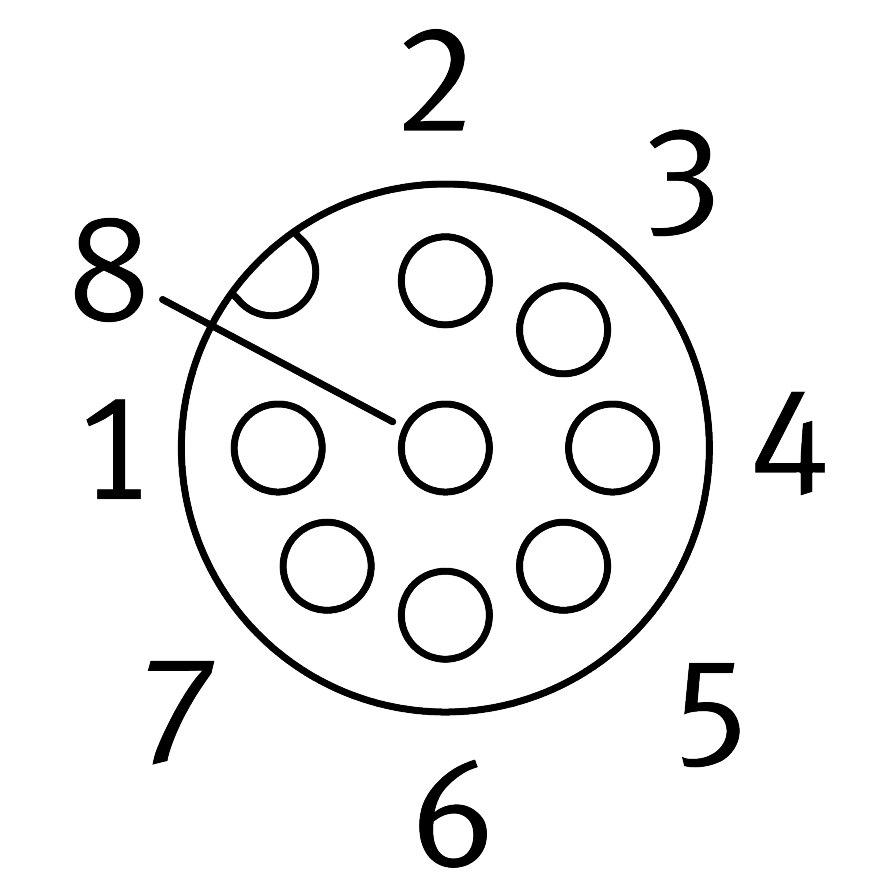

- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 8
- Electrical connection 1, occupied pins/wires
- 3
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 2, number of pins/wires
- 5
- Electrical connection 2, occupied pins/wires
- 3
- Electrical connection 2, type of mounting
- Screw-type lock
- Electrical connection 3, occupied pins/wires
- 3
- DC operating voltage range
- 0 V...60 V
- Operating voltage range AC
- 0 V...48 V
- Current rating at 40° C
- 2 A
- Surge resistance
- 0.8 kV
- Shield
- No
- Cable length
- 0.3 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8080777. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
