Festo
8080781
Connecting cable NEBL-T12W4-E-15-N-LE4
This Festo industrial component, part number 8080781, features an angled M12x1 T-coded socket with 4 pins and a screw-type lock on the field device side, and an open-end cable with 4 pins on the control side. Built in accordance with EN 61076-2-111 and c UL us-Listed (OL) under certificate UL E504946, the unit weighs 1556 g and supports a DC operating voltage range from 0 V to 63 V with a current rating of 12 A at 40°C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8080781
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8080781.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-111
- Certication
- c UL us - Listed (OL)
- Certicate issuing authority
- UL E504946
- Cable designation
- Without label holder
- Product weight
- 1556 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, connection technology

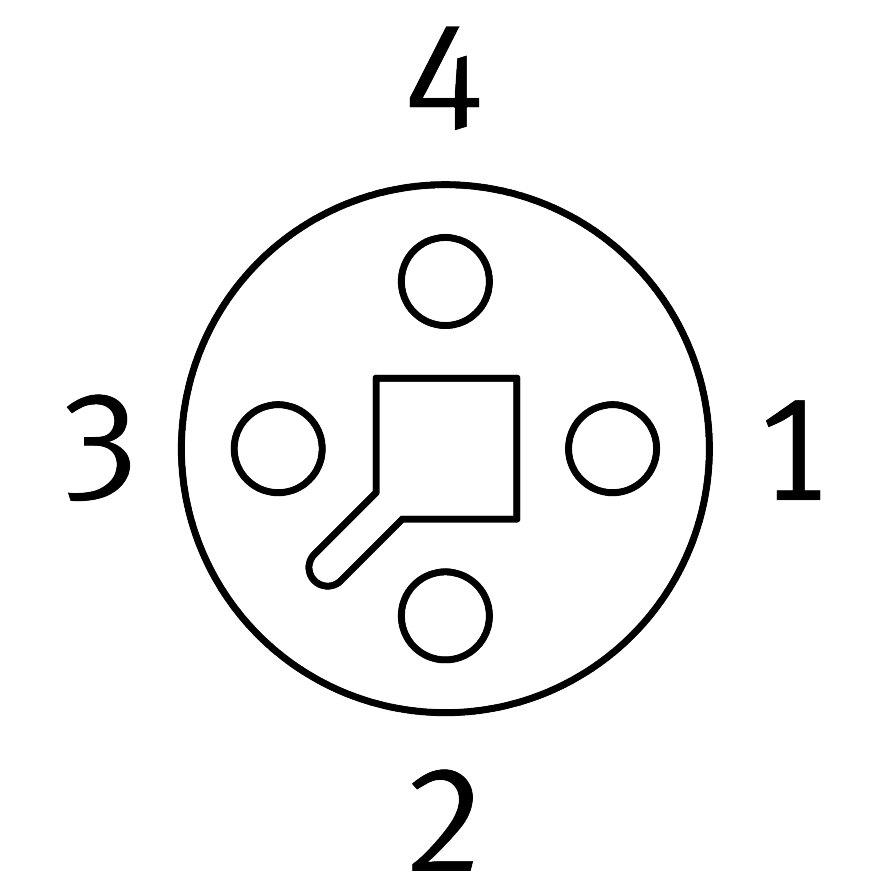

- M12x1, T-coded as per EN 61076-2-111
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 4
- DC operating voltage range
- 0 V...63 V
- Current rating at 40° C
- 12 A
- Surge resistance
- 1.5 kV
- Shield
- No
- Cable length
- 15 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 34 mm
- Bending radius, exible cable installation
- 68 mm
- Cable diameter
- 6.75 mm
- Cable diameter tolerance
- ± 0.2 mm
- Cable design
- 4 x 1.5 mm²
