Name: Festo 8080788 Connecting cable NEBC-M12W8-E-10-N-M12G8
Brand: Festo

Connecting cable NEBC-M12W8-E-10-N-M12G8

The Festo part number 8080788 is an industrial component weighing 496 g and manufactured in accordance with the EN 61076-2-101 norm. This unit features an angled field device side connection with a round socket, screw-type lock, and 8-pin M12x1 A-coded connection technology, alongside a straight control side connection utilizing a round plug with 8 pins and the same M12x1 A-coded technology without a label holder. Certified by UL under file E474609 and listed as c UL us - Listed (OL), this component integrates standardized electrical interfaces for control and field device integration. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8080788
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8080788.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Based on norm: EN 61076-2-101
Certication: c UL us - Listed (OL)
Certicate issuing authority: UL E474609
Cable designation: Without label holder
Product weight: 496 g
Electrical connection 1, function: Field device side
Electrical connection 1, design: Round
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Angled

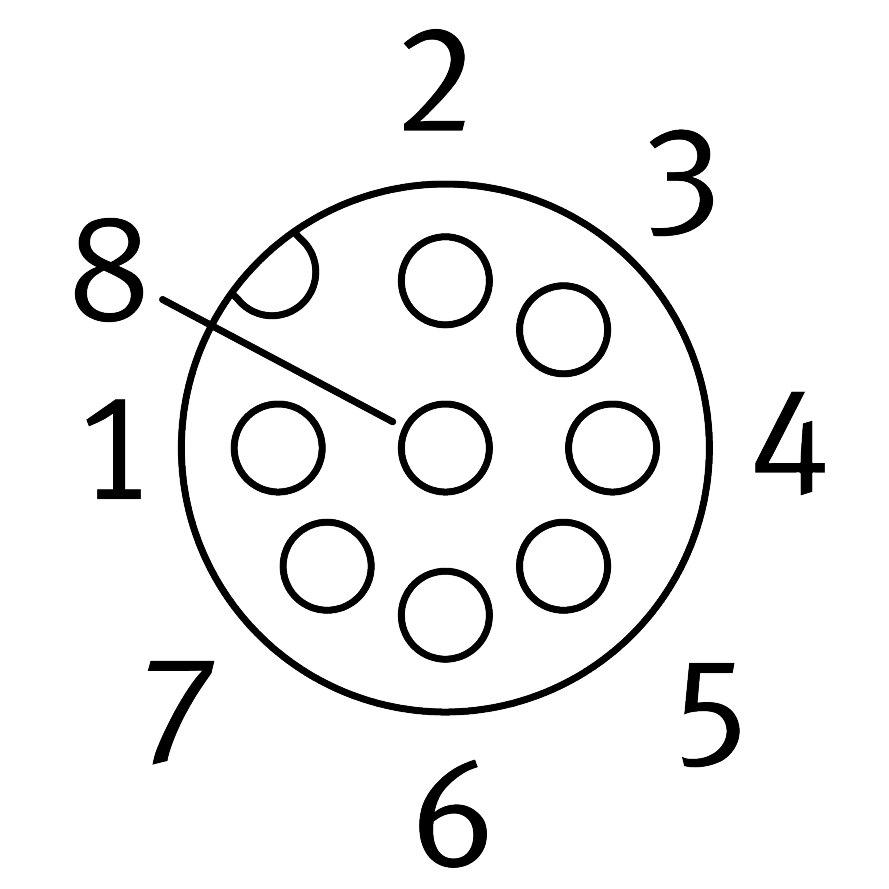

Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 8
Electrical connection 1, occupied pins/wires: 8
Electrical connection 1, type of mounting: Screw-type lock
Electrical connection 2, function: Control side
Electrical connection 2, design: Round
Electrical connection 2, connection type: Plug
Electrical connection 2, cable outlet: Straight
Electrical connection 2, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 2, number of pins/wires: 8
Electrical connection 2, occupied pins/wires: 8
Electrical connection 2, type of mounting: Screw-type lock
DC operating voltage range: 0 V...30 V
Operating voltage range AC: 0 V...30 V
Current rating at 40° C: 2 A
Surge resistance: 0.8 kV
Shield: No
Cable length: 10 m
Cable characteristic: Suitable for energy chains
Connector cable test conditions: Test conditions on request
Bending radius, xed cable installation: 30 mm

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8080788. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
