Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8080793
Connecting cable NEBL-T12G4-E-15-N-LE4
The Festo part number 8080793 is an industrial component featuring an M12x1, T-coded round socket with a straight cable outlet on the field device side and an open-end cable on the control side, complying with EN 61076-2-111 and holding c UL us - Listed (OL) certification via UL E504946. Weighing 1556 g, this 4-pin and 4-wire assembly operates within a DC voltage range of 0 V to 63 V and supports a current rating of 12 A at 40° C using a screw-type lock mounting without a label holder. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8080793
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8080793.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-111
- Certication
- c UL us - Listed (OL)
- Certicate issuing authority
- UL E504946
- Cable designation
- Without label holder
- Product weight
- 1556 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology

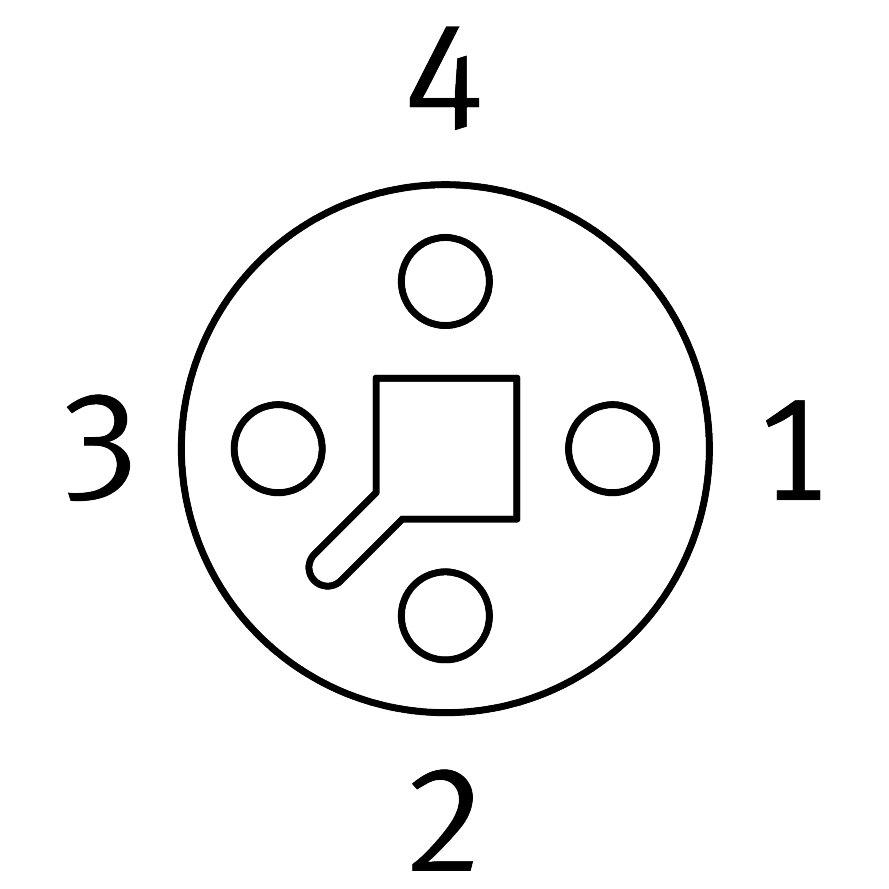

- M12x1, T-coded as per EN 61076-2-111
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 4
- DC operating voltage range
- 0 V...63 V
- Current rating at 40° C
- 12 A
- Surge resistance
- 1.5 kV
- Shield
- No
- Cable length
- 15 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 34 mm
- Bending radius, exible cable installation
- 68 mm
- Cable diameter
- 6.75 mm
- Cable diameter tolerance
- ± 0.2 mm
- Cable design
- 4 x 1.5 mm²
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8080793. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
