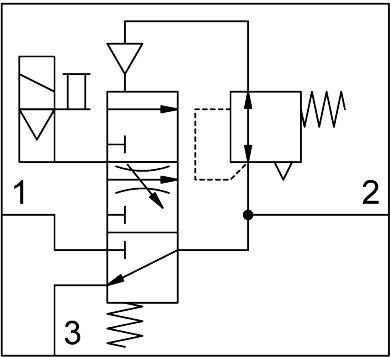

Reference imageConfirm configuration by manufacturer part number.
Festo
8080855
Soft-start valve MS6-EDE-1/2-V24-B
The Festo 8080855 is a size 6 electrical industrial component from the MS series featuring a 62 mm width dimension and a 3/2-way, closed, monostable poppet valve structural design. This electrically actuated, piloted valve utilizes an internal pilot air supply port, mechanical spring reset method, and a negative overlap lap, offering detenting or non-detenting manual override with an operating pressure range of 0.3 MPa to 0.7 MPa (3 bar to 7 bar). Additional functions include a muffler, any mounting position, a b-value of 0.46, a C value of 23.9 l/sbar, a standard flow rate exhaust of 4000 l/min from 6 to 0 bar, and a normal nominal flow rate of 5000 l/min normalized to DIN 1343, while the exhaust air function cannot be throttled and switching position indication requires accessories. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8080855
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8080855.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 6
- Width dimension
- 62 mm
- Exhaust air function
- Cannot be throttled
- Actuation type
- Electrical
- Mounting position
- Any
- Selection of additional function
- with muffler
- Series
- MS
- Manual override
- Detenting | Non-detenting
- Structural design
- Poppet valve, electrically actuated
- Reset method
- Mechanical spring
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Valve function
- 3/2-way, closed, monostable
- Lap
- Negative overlap
- Switching position indication
- with accessories
- Operating pressure
- 0.3 MPa...0.7 MPa | 3 bar...7 bar
- b-value
- 0.46
- C value
- 23.9 l/sbar
- Standard ow rate exhaust 6-> 0 bar
- 4000 l/min
- Normal nominal ow rate (normalized to DIN 1343)
- 5000 l/min
- On time
- 31 ms
- Coil characteristics
- 24 V DC: 2.3 W
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Storage temperature
- -10 °C...60 °C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8080855. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
