Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

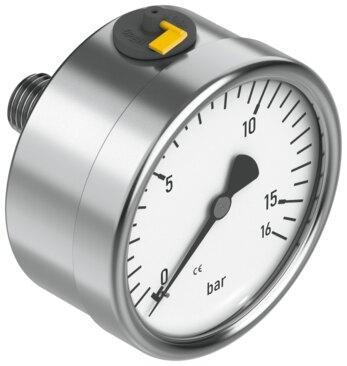

Reference imageConfirm configuration by manufacturer part number.
Festo
8081401
Pressure gauge PAGN-63-16-G14-R1-1.6-0.5-V2
The Festo part number 8081401 is a Bourdon tube pressure gauge featuring a nominal size of 63, a display range of 0 bar to 16 bar, and an in-line installation design with a G1/4 pneumatic connection centered on the rear side. This component conforms to EN 837-1 standards, offers a measurement accuracy class of 1.6, and provides IP65 degree of protection for use with neutral liquids and inert gases within an operating pressure range of 0 bar to 16 bar. Constructed with high-alloy stainless steel media-contacting materials and compliant with VDMA24364-B2-L LABS conformity and RoHS material notes, it operates within an ambient temperature of -40 °C to 60 °C and includes ATEX certification for zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8081401
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8081401.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 bar...16 bar
- Conforms to standard
- EN 837-1
- Pressure gauge nominal size
- 63
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...1.6 MPa | 0 bar...16 bar | 0 psi...232 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 1.6
- Degree of protection
- IP65
- Storage temperature
- -40 °C...70 °C
- Temperature of medium
- -40 °C...200 °C
- Ambient temperature
- -40 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- G1/4
- Materials in contact with the media
- high-alloy stainless steel
- Material of screwed plug
- high-alloy stainless steel
- Housing material
- ABS
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8081401. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
