Festo
8081922

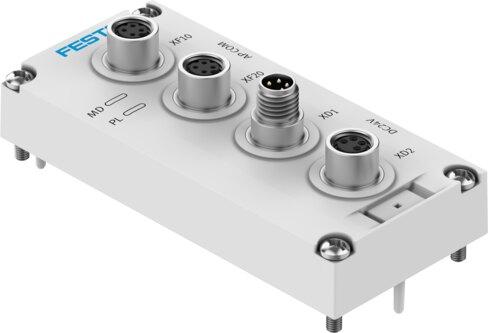

Electrical interface VAEM-L1-S-12-AP
The Festo industrial component, part number 8081922, measures 42 mm x 91 mm x 30 mm with an upward connection position and supports up to 12 valve positions and 24 solenoid coils. It operates on a nominal DC voltage of 24 V for both electronics/sensors and load, featuring LED and internal communication diagnostics for voltage monitoring, load switch-off, and overvoltage or undervoltage conditions. Reverse polarity protection and internal electronic fuses per channel are included alongside plug-type power supply connections for incoming electronics, sensors, and load. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8081922
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8081922.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- 42 mm x 91 mm x 30 mm
- Connection position
- up
- Diagnostics via LED
- Diagnostics per module | Load power supply
- Diagnose per internal communication
- Load switch-off | Electronics/sensors overvoltage | Overvoltage load | Electronics/sensors undervoltage | Undervoltage load
- Max. no. of valve positions
- 12
- Max. no. of solenoid coils
- 24
- Reverse polarity protection
- Yes
- Module parameters
- Conguration of voltage monitoring, load supply PL | Response in error state
- Fuse protection (short circuit)
- Internal electronic fuse per channel
- Intrinsic current consumption at nominal operating voltage for
- Typically 34 mA
- Intrinsic current consumption at nominal operating voltage load
- Typically 16 mA
- Nominal operating voltage DC for electronics/sensors
- 24 V
- Nominal operating voltage DC load
- 24 V
- Power failure buffering
- 10 ms
- Power failure buffering of load
- 3 ms
- Permissible voltage uctuations for electronics/sensors
- ±25%
- Permissible voltage uctuations load
- ±10%
- Max. power supply
- 2 x 4 A (external fuse required)
- Power supply, function
- Incoming electronics/sensors and load
- Power supply, type of connection
- Plug
- Power supply, connection technology
- M8x1, A-coded as per EN 61076-2-104
- Power supply, number of pins/wires
- 4
- Voltage forwarding, function
- Outgoing electronics/sensors and load
- Voltage forwarding, connection type
- Socket
- Voltage forwarding, connection technology
- M8x1, A-coded as per EN 61076-2-104
- Voltage forwarding, number of pins/wires
- 4
