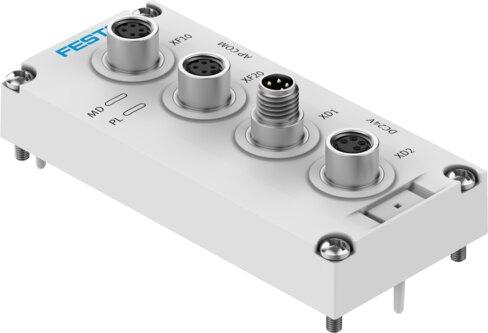

Reference imageConfirm configuration by manufacturer part number.
Festo
8081923
Electrical interface VAEM-L1-S-24-AP
The Festo industrial component, part number 8081923, measures 42 mm x 91 mm x 30 mm with an upward connection position and plug-type power supply connections for incoming electronics, sensors, and load. It operates at a nominal DC voltage of 24 V for both electronics/sensors and load, featuring a typical intrinsic current consumption of 34 mA and 22 mA respectively, power failure buffering of 10 ms and 3 ms, and a maximum power supply of 2 x 4 A requiring an external fuse. This module supports up to 24 valve positions and 48 solenoid coils, provides reverse polarity protection, internal electronic fuse short-circuit protection per channel, and LED diagnostics alongside internal communication error monitoring for load switch-off, voltage fluctuations, and supply statuses. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8081923
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8081923.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- 42 mm x 91 mm x 30 mm
- Connection position
- up
- Diagnostics via LED
- Diagnostics per module | Load power supply
- Diagnose per internal communication
- Load switch-off | Electronics/sensors overvoltage | Overvoltage load | Electronics/sensors undervoltage | Undervoltage load
- Max. no. of valve positions
- 24
- Max. no. of solenoid coils
- 48
- Reverse polarity protection
- Yes
- Module parameters
- Conguration of voltage monitoring, load supply PL | Response in error state
- Fuse protection (short circuit)
- Internal electronic fuse per channel
- Intrinsic current consumption at nominal operating voltage for
- Typically 34 mA
- Intrinsic current consumption at nominal operating voltage load
- Typically 22 mA
- Nominal operating voltage DC for electronics/sensors
- 24 V
- Nominal operating voltage DC load
- 24 V
- Power failure buffering
- 10 ms
- Power failure buffering of load
- 3 ms
- Permissible voltage uctuations for electronics/sensors
- ±25%
- Permissible voltage uctuations load
- ±10%
- Max. power supply
- 2 x 4 A (external fuse required)
- Power supply, function
- Incoming electronics/sensors and load
- Power supply, type of connection
- Plug
- Power supply, connection technology
- M8x1, A-coded as per EN 61076-2-104
- Power supply, number of pins/wires
- 4
- Voltage forwarding, function
- Outgoing electronics/sensors and load
- Voltage forwarding, connection type
- Socket
- Voltage forwarding, connection technology
- M8x1, A-coded as per EN 61076-2-104
- Voltage forwarding, number of pins/wires
- 4
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8081923. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
