Festo
8082128

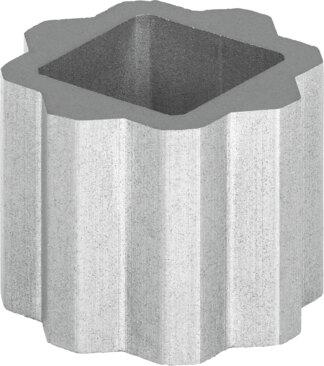

Reducing sleeve DARQ-R-A-S36-S27-36
The Festo 8082128 is an industrial component featuring a structural design with an internal square and external octagon reducing sleeve, weighing 215 g with a length of 36 mm. Connection 1 functions as the actuator outlet in a SW36 design, while Connection 2 operates as the reducing outlet in a SW27 design. Constructed with a sintered steel and stainless sleeve, this RoHS-compliant part has a corrosion resistance class of 2 for moderate corrosion stress and LABS conformity to VDMA24364 Zone III. Submit the exact part number, quantity, and application requirements for a quote on this pack size of 1.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8082128
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8082128.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Length
- 36 mm
- Pack size
- 1
- Structural design
- Internal square and external octagon | Reducing sleeve
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Product weight
- 215 g
- Connection 1, function
- Actuator outlet
- Connection 1, design
- SW36
- Connection 2, function
- Reducing outlet
- Connection 2, design
- SW27
- Note on materials
- RoHS compliant
- Sleeve material
- Sintered steel, stainless
