Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8082249

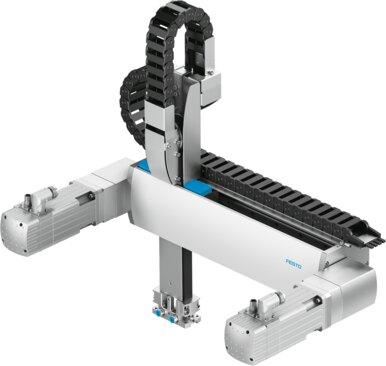

Linear gantry YXML-1
The Festo 8082249 is a linear gantry system featuring electric actuator modules, an anodized aluminum adapter plate, a high-alloy stainless steel mounting bracket, and a PA-reinforced energy chain configured for horizontal mounting positions requiring a 0.1 mm/m surface flatness. Built for a 100% duty cycle, this RoHS-compliant industrial component maintains VDMA24364 Zone III LABS conformity and requires maintenance every 2500 km within an ambient temperature range of 10 °C to 40 °C, relative air humidity of 0 to 90%, and storage temperatures between -10 °C and 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8082249
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8082249.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Required atness of mounting surfaces
- 0.1 mm/m
- Mounting position
- Horizontal
- Structural design
- Linear gantry system | with electric actuator modules
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -10 °C...60 °C
- Relative air humidity
- 0 - 90%
- Ambient temperature
- 10 °C...40 °C
- Maintenance interval
- 2500 km
- Note on materials
- RoHS compliant
- Adapter plate material
- Anodized aluminum
- Material of mounting bracket
- high-alloy stainless steel
- Energy chain material
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8082249. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
