Festo
8082253

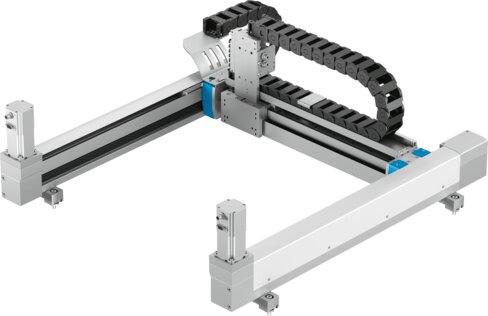

Planar surface gantry YXMF-2
The Festo part number 8082253 is a planar surface gantry system featuring electric actuator modules that operate at a 100% duty cycle and require a horizontal mounting position with a mounting surface flatness of 0.1 mm/m. Constructed with an anodized aluminum adapter plate, galvanized steel and anodized aluminum mounting brackets, and PA-reinforced energy chain, the assembly adheres to VDMA24364 Zone III LABS conformity and RoHS material directives. Maintenance is specified at a 2500 km interval within ambient temperatures of 10 °C to 45 °C, relative air humidity of 0 to 90%, and storage temperatures from -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8082253
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8082253.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Required atness of mounting surfaces
- 0.1 mm/m
- Mounting position
- Horizontal
- Structural design
- Planar surface gantry system | with electric actuator modules
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -10 °C...60 °C
- Relative air humidity
- 0 - 90%
- Ambient temperature
- 10 °C...45 °C
- Maintenance interval
- 2500 km
- Note on materials
- RoHS compliant
- Adapter plate material
- Anodized aluminum
- Material of mounting bracket
- Anodized aluminum | Steel, galvanized
- Energy chain material
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8082253. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
