Festo
8082256

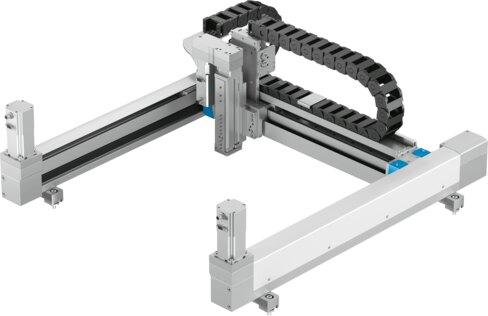

Three-dimensional gantry YXMR-2
The Festo 8082256 is an industrial space portal system featuring a structural design with electric and pneumatic actuator modules configured for horizontal mounting positions with a 100% duty cycle. Constructed with anodized aluminum adapter plates, galvanized steel and anodized aluminum mounting brackets, and PA-reinforced energy chains, this RoHS-compliant component requires a mounting surface flatness of 0.1 mm/m and a maintenance interval of 2500 km. It operates within an ambient temperature range of 10 °C to 45 °C, relative air humidity of 0 to 90%, storage temperatures between -10 °C and 60 °C, and maintains VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8082256
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8082256.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Required atness of mounting surfaces
- 0.1 mm/m
- Mounting position
- Horizontal
- Structural design
- Space portal system | with electric and pneumatic actuator modules
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -10 °C...60 °C
- Relative air humidity
- 0 - 90%
- Ambient temperature
- 10 °C...45 °C
- Maintenance interval
- 2500 km
- Note on materials
- RoHS compliant
- Adapter plate material
- Anodized aluminum
- Material of mounting bracket
- Anodized aluminum | Steel, galvanized
- Energy chain material
- PA-reinforced
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8082256. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
