Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8082383
Connecting cable NEBC-R3G8-KS-0.2-N-S-R3G8-ET
The Festo 8082383 is an industrial component featuring an 8-pin, 8-wire RJ45 plug with a straight cable outlet on both the field device and control sides. This shielded assembly operates within a DC voltage range of 0 V to 50 V, supports a current rating of 1.5 A at 40° C, and provides a surge resistance of 2.5 kV with a product weight of 15 g and no label holder. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8082383
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8082383.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Product weight
- 15 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology

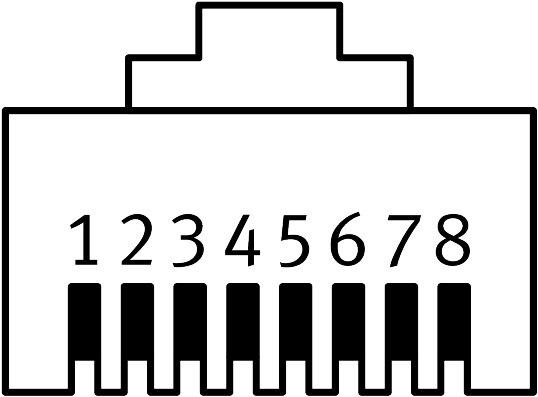

- RJ45
- Electrical connection 1, number of pins/wires
- 8
- Electrical connection 1, occupied pins/wires
- 8
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- RJ45
- Electrical connection 2, number of pins/wires
- 8
- Electrical connection 2, occupied pins/wires
- 8
- DC operating voltage range
- 0 V...50 V
- Current rating at 40° C
- 1.5 A
- Surge resistance
- 2.5 kV
- Shield
- Yes
- Cable length
- 0.2 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 24 mm
- Cable diameter
- 5 mm
- Cable design
- 4 x 2 x 0.16 mm²
- Nominal conductor cross section
- 0.16 mm²
- Degree of protection
- IP20
- Note on degree of protection
- In mounted state
- Ambient temperature
- -20 °C...60 °C
- CE marking (see declaration of conformity)
- As per EU RoHS directive
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8082383. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
