Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

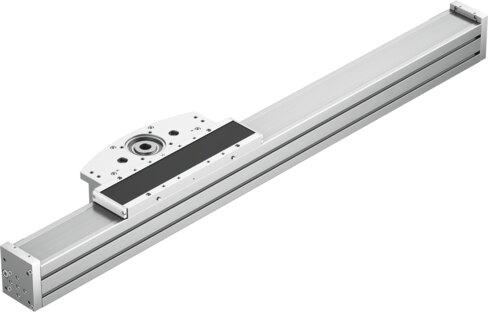

Reference imageConfirm configuration by manufacturer part number.
Festo
8082399
Cantilever linear actuator ELCC-TB-KF-90-200-0H-P0-CR
The Festo electromechanical cantilever axis, part number 8082399, is a Size 90 industrial component featuring a 200 mm working stroke, a 5 mm toothed belt pitch, and a 50.93 mm drive pinion effective diameter with an integrated recirculating ball bearing guide. This configuration delivers a maximum speed of 5 m/s, a maximum acceleration of 30 m/s², a repetition accuracy of ±0.05 mm, and a maximum driving torque of 33 Nm while operating within an ambient temperature range of -10 °C to 60 °C. Rated at IP20 with a CRC of 0 and VDMA24364 Zone III LABS conformity, the unit accommodates any mounting position and supports maximum forces of 13957 N (Fy) and 13523 N (Iz moment of area 2049490 mm⁴; Iy moment of area 2667900 mm⁴). Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8082399
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8082399.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 50.93 mm
- Working stroke
- 200 mm
- Size
- 90
- Stroke reserve
- 0 mm
- Toothed belt pitch
- 5 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical cantilever axis
- Max. acceleration
- 30 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.05 mm
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP20
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 2667900 mm⁴
- 2nd moment of area Iz
- 2049490 mm⁴
- Max. driving torque
- 33 Nm
- Max. force Fy
- 13957 N
- Max. force Fz
- 13523 N
- Max. torque Mx
- 167 Nm
- Max. torque My
- 1300 Nm
- Max. torque Mz
- 1233 Nm
- Max. feed force Fx
- 1200 N
- Mass moment of inertia JH per meter of stroke
- 62.9 kgcm²
- Mass moment of inertia JL per kg of payload
- 6.5 kgcm²
- Mass moment of inertia JO
- 55.2 kgcm²
- Feed constant
- 160 mm/U
- Reference service life
- 5000 km
- Lubrication interval, distance dependent
- 1000 km
- Moving mass at 0 mm stroke
- 5487 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8082399. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
