Festo
8082400

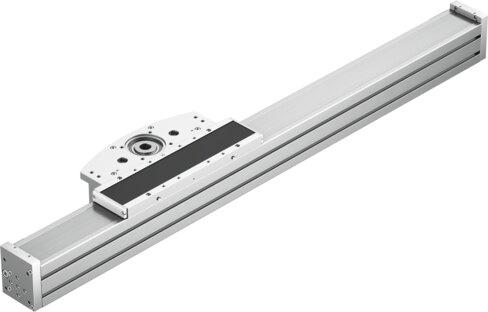

Cantilever linear actuator ELCC-TB-KF-90-300-0H-P0-CR
The Festo size 90 electromechanical cantilever axis, part number 8082400, features an integrated recirculating ball bearing guide and a toothed belt pitch of 5 mm with a 50.93 mm drive pinion effective diameter. This component operates across a working stroke of 300 mm with zero stroke reserve, delivering a maximum speed of 5 m/s, a maximum acceleration of 30 m/s², and a repetition accuracy of ±0.05 mm. Designed for any mounting position, it withstands a maximum driving torque of 33 Nm, maximum forces Fy of 13957 N and Fz of 13523 N, and ambient temperatures from -10 °C to 60 °C, while maintaining a CRC rating of 0 and an IP20 degree of protection. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8082400
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8082400.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 50.93 mm
- Working stroke
- 300 mm
- Size
- 90
- Stroke reserve
- 0 mm
- Toothed belt pitch
- 5 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical cantilever axis
- Max. acceleration
- 30 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.05 mm
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP20
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 2667900 mm⁴
- 2nd moment of area Iz
- 2049490 mm⁴
- Max. driving torque
- 33 Nm
- Max. force Fy
- 13957 N
- Max. force Fz
- 13523 N
- Max. torque Mx
- 167 Nm
- Max. torque My
- 1300 Nm
- Max. torque Mz
- 1233 Nm
- Max. feed force Fx
- 1200 N
- Mass moment of inertia JH per meter of stroke
- 62.9 kgcm²
- Mass moment of inertia JL per kg of payload
- 6.5 kgcm²
- Mass moment of inertia JO
- 55.2 kgcm²
- Feed constant
- 160 mm/U
- Reference service life
- 5000 km
- Lubrication interval, distance dependent
- 1000 km
- Moving mass at 0 mm stroke
- 5487 g
