Festo
8082407

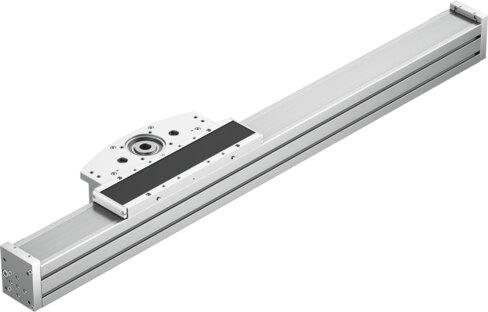

Cantilever linear actuator ELCC-TB-KF-90-1700-0H-P0-CR
This Festo size 90 electromechanical cantilever axis features an integrated recirculating ball bearing guide, a 1700 mm working stroke, and a 0 mm stroke reserve. Driven by a 5 mm pitch toothed belt with a 50.93 mm effective diameter drive pinion, the component delivers a max acceleration of 30 m/s², a max speed of 5 m/s, and a repetition accuracy of ±0.05 mm while supporting a max driving torque of 33 Nm, max forces of Fy 13957 N and Fz 13523 N, and 2nd moments of area Iy 2667900 mm⁴ and Iz 2049490 mm⁴. The assembly operates within an ambient temperature range of -10 °C to 60 °C, maintains an IP20 degree of protection with CRC 0 corrosion resistance and VDMA24364 Zone III LABS conformity, and supports any mounting position. Submit the exact part number, quantity, and application requirements for an immediate quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8082407
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8082407.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 50.93 mm
- Working stroke
- 1700 mm
- Size
- 90
- Stroke reserve
- 0 mm
- Toothed belt pitch
- 5 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical cantilever axis
- Max. acceleration
- 30 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.05 mm
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP20
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 2667900 mm⁴
- 2nd moment of area Iz
- 2049490 mm⁴
- Max. driving torque
- 33 Nm
- Max. force Fy
- 13957 N
- Max. force Fz
- 13523 N
- Max. torque Mx
- 167 Nm
- Max. torque My
- 1300 Nm
- Max. torque Mz
- 1233 Nm
- Max. feed force Fx
- 1200 N
- Mass moment of inertia JH per meter of stroke
- 62.9 kgcm²
- Mass moment of inertia JL per kg of payload
- 6.5 kgcm²
- Mass moment of inertia JO
- 55.2 kgcm²
- Feed constant
- 160 mm/U
- Reference service life
- 5000 km
- Lubrication interval, distance dependent
- 1000 km
- Moving mass at 0 mm stroke
- 5487 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8082407. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
