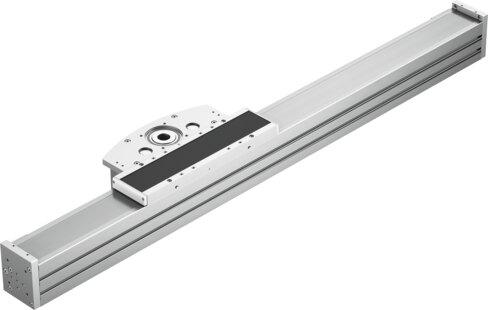

Reference imageConfirm configuration by manufacturer part number.
Festo
8082411
Cantilever linear actuator ELCC-TB-KF-110-500-0H-P0-CR
The Festo 8082411 is an electromechanical cantilever axis of size 110 featuring a toothed belt pitch of 8 mm, an effective drive pinion diameter of 68.755 mm, and a working stroke of 500 mm with 0 mm stroke reserve. Guided by a recirculating ball bearing and mountable in any position, it delivers a maximum speed of 5 m/s, a maximum acceleration of 30 m/s², a repetition accuracy of ±0.05 mm, and a maximum driving torque of 90 Nm. This IP20-rated component operates within an ambient temperature range of -10 °C to 60 °C, exhibits a corrosion resistance class of CRC 0 with VDMA24364 Zone III LABS conformity, and withstands maximum forces Fy of 20596 N and Fz of 20022 N alongside 2nd moments of area Iy of 6830570 mm⁴ and Iz of 4925970 mm⁴. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8082411
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8082411.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 68.755 mm
- Working stroke
- 500 mm
- Size
- 110
- Stroke reserve
- 0 mm
- Toothed belt pitch
- 8 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical cantilever axis
- Max. acceleration
- 30 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.05 mm
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP20
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 6830570 mm⁴
- 2nd moment of area Iz
- 4925970 mm⁴
- Max. driving torque
- 90 Nm
- Max. force Fy
- 20596 N
- Max. force Fz
- 20022 N
- Max. torque Mx
- 317 Nm
- Max. torque My
- 2368 Nm
- Max. torque Mz
- 2286 Nm
- Max. feed force Fx
- 2500 N
- Mass moment of inertia JH per meter of stroke
- 174.9 kgcm²
- Mass moment of inertia JL per kg of payload
- 11.8 kgcm²
- Mass moment of inertia JO
- 157.1 kgcm²
- Feed constant
- 216 mm/U
- Reference service life
- 5000 km
- Lubrication interval, distance dependent
- 1000 km
- Moving mass at 0 mm stroke
- 10017 g
