Festo
8082418

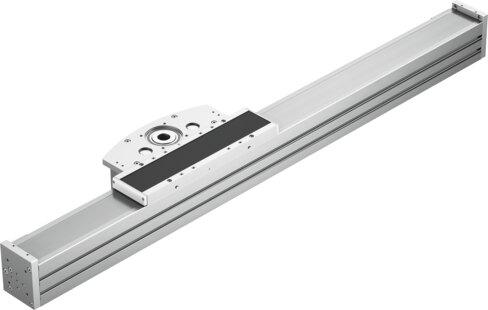

Cantilever linear actuator ELCC-TB-KF-110-2000-0H-P0-CR
The Festo size 110 electromechanical cantilever axis features an integrated recirculating ball bearing guide, a 68.755 mm drive pinion effective diameter, and an 8 mm toothed belt pitch supporting a 2000 mm working stroke with zero stroke reserve. This IP20-rated assembly accommodates any mounting position within an ambient temperature range of -10 °C to 60 °C, delivering a maximum speed of 5 m/s, a maximum acceleration of 30 m/s², and a repetition accuracy of ±0.05 mm under a max driving torque of 90 Nm. Structural rigidity is defined by 2nd moments of area Iy of 6830570 mm⁴ and Iz of 4925970 mm⁴, alongside maximum forces Fy of 20596 N and Fz of 20022 N, while maintaining CRC 0 corrosion resistance and VDMA24364 Zone III LABS conformity. Submit part number 8082418, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8082418
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8082418.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 68.755 mm
- Working stroke
- 2000 mm
- Size
- 110
- Stroke reserve
- 0 mm
- Toothed belt pitch
- 8 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical cantilever axis
- Max. acceleration
- 30 m/s²
- Max. speed
- 5 m/s
- Repetition accuracy
- ±0.05 mm
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP20
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 6830570 mm⁴
- 2nd moment of area Iz
- 4925970 mm⁴
- Max. driving torque
- 90 Nm
- Max. force Fy
- 20596 N
- Max. force Fz
- 20022 N
- Max. torque Mx
- 317 Nm
- Max. torque My
- 2368 Nm
- Max. torque Mz
- 2286 Nm
- Max. feed force Fx
- 2500 N
- Mass moment of inertia JH per meter of stroke
- 174.9 kgcm²
- Mass moment of inertia JL per kg of payload
- 11.8 kgcm²
- Mass moment of inertia JO
- 157.1 kgcm²
- Feed constant
- 216 mm/U
- Reference service life
- 5000 km
- Lubrication interval, distance dependent
- 1000 km
- Moving mass at 0 mm stroke
- 10017 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8082418. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
