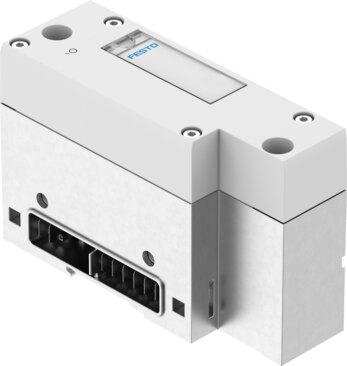

Name: Festo 8082877 Pneumatic interface VABA-S6-1-X1-CB
Brand: Festo

Pneumatic interface VABA-S6-1-X1-CB

The Festo part number 8082877 is an industrial component featuring a Type 44 VTSA valve manifold interface and fieldbus electrical actuation via CPX. This module supports up to 24 single-solenoid valves or 12 double-solenoid valves, incorporating internal electronic short-circuit fuse protection per pneumatic valve output alongside comprehensive diagnostics for wire breaks, short circuits, and undervoltage. Rated for IP65 and NEMA 4 protection, it operates within a 21.6 V to 26.4 V DC range and maintains a weight of 560 g across an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8082877
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8082877.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve manifold interface: Type 44, VTSA
Diagnostics: Wire break per valve coil | Short circuit of pneumatic valves | Undervoltage of pneumatic valves
Max. no. of valve positions: 12 for double-solenoid valves | 24 for single-solenoid valves
LED indicators: 1 group diagnostics | Channel status on pneumatic valves
Parameterization: Failsafe per channel | Forcing per channel | Idle mode per channel | Module monitoring
Fuse protection (short circuit): Internal electronic fuse per pneumatic valve output
DC operating voltage range: 21.6 V...26.4 V
Intrinsic current consumption at nominal operating voltage: typ. 11 mA (electronics operating voltage supply) | Typ. 45 mA (pneumatic valve load power supply)
Max. power supply per channel: 0.2 A
Max. residual current per module: 6 A
Nominal operating voltage DC: 24 V
Electrical isolation between channel and internal bus: Yes, when using an additional supply for the pneumatic valves
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Degree of protection: IP65 | NEMA 4
Ambient temperature: -5 °C...50 °C
Product weight: 560 g
Electrical actuation: Fieldbus
Electrical connection: Via CPX
Note on materials: RoHS compliant
Cover material: PA
Housing material: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8082877. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
