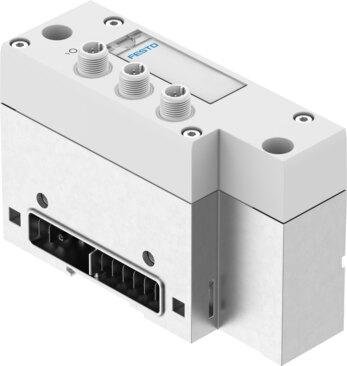

Name: Festo 8082879 Pneumatic interface VABA-S6-1-X1-3V-CB
Brand: Festo

Pneumatic interface VABA-S6-1-X1-3V-CB

The Festo 8082879 is an industrial component featuring a Type 44 VTSA valve manifold interface and fieldbus electrical actuation, supporting up to 24 single-solenoid or 12 double-solenoid valves within an IP65 and NEMA 4 rated housing. It operates on a 24 VDC nominal voltage with an internal electronic fuse per pneumatic valve output, comprehensive diagnostic capabilities including wire break and short circuit detection, and configurable channel parameterization. Weighing 580 g, this module includes M12 A-coded 5-pin electrical connections via CPX and exhibits CRC 0 corrosion resistance across an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8082879
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8082879.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve manifold interface: Type 44, VTSA
Diagnostics: Wire break per valve coil | Short circuit of pneumatic valves | Undervoltage of pneumatic valves
Max. no. of valve positions: 12 for double-solenoid valves | 24 for single-solenoid valves
LED indicators: 1 group diagnostics | 3 load supply | Channel status on pneumatic valves
Parameterization: Failsafe per channel | Forcing per channel | Idle mode per channel | Module monitoring
Fuse protection (short circuit): Internal electronic fuse per pneumatic valve output
DC operating voltage range: 21.6 V...26.4 V
Intrinsic current consumption at nominal operating voltage: typ. 11 mA (electronics operating voltage supply) | Typ. 45 mA (pneumatic valve load power supply)
Max. power supply per channel: 0.2 A
Max. residual current per module: 6 A
Nominal operating voltage DC: 24 V
Electrical isolation between channel and internal bus: Yes
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Degree of protection: IP65 | NEMA 4
Ambient temperature: -5 °C...50 °C
Product weight: 580 g
Electrical actuation: Fieldbus
Electrical connection: 3x M12x1 A-coded | 5-pin | Plug | Via CPX
Note on materials: RoHS compliant
Cover material: PA
Housing material: Die-cast aluminum
