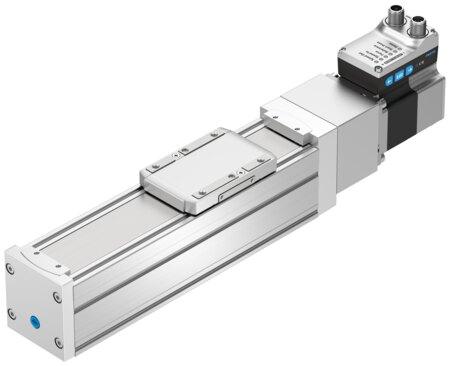

Name: Festo 8083383 Ball Screw axis unit ELGS-BS-KF-60-100-12P-ST-M-H1-PLK-AA
Brand: Festo

Ball Screw axis unit ELGS-BS-KF-60-100-12P-ST-M-H1-PLK-AA

The Festo part number 8083383 is an electromechanical linear axis featuring an integrated actuator, ball screw, and a recirculating ball bearing guide configured with a 100 mm working stroke, a 60 size, a 12 mm screw diameter, and a 12 mm/U spindle pitch. It operates at any mounting position with a 100% duty cycle, delivering a maximum speed of 0.25 m/s, a maximum acceleration of 5 m/s², and a repetition accuracy of ±0.01 mm. Position sensing is achieved via motor encoder and proximity switch, supported by an absolute single-turn magnetic rotor position sensor, integrated end-position sensing, an LED display user interface, and an integrated precise CMOS temperature sensor with analogue output for over-temperature shutdown. Insulation protection class B and configurable, non-galvanically isolated digital logic outputs complete the unit. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8083383
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8083383.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working stroke: 100 mm
Size: 60
Stroke reserve: 0 mm
Screw diameter: 12 mm
Spindle pitch: 12 mm/U
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Electromechanical linear axis | With ball screw | With integrated actuator
Position sensing: Motor encoder | Via proximity switch
Rotor position sensor: Absolute single-turn encoder
Rotor position sensor measuring principle: Magnetic
Temperature monitoring: Shutdown in the event of over temperature | Integrated precise CMOS temperature sensor with analogue output
Additional functions: User interface | Integrated end-position sensing
Display: LED
Max. acceleration: 5 m/s²
Max. speed: 0.25 m/s
Repetition accuracy: ±0.01 mm
Characteristics of digital logic outputs: Congurable | Not galvanically isolated
Duty cycle: 100%
Insulation protection class: B
Max. current of digital logic outputs: 100 mA
Max. current consumption: 5.3 A
Logic max. current consumption: 0.3 A
DC nominal voltage: 24 V
Nominal current: 5.3 A
Parameterization interface: IO-Link® | User interface

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8083383. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
