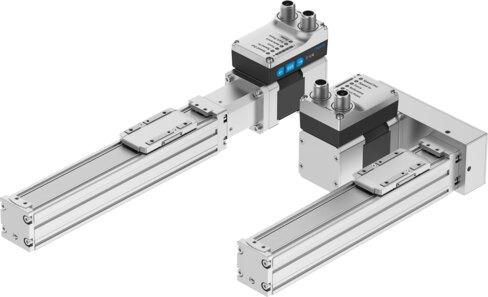

Reference imageConfirm configuration by manufacturer part number.
Festo
8083433
Ball Screw axis unit ELGS-BS-KF-32-
The Festo part number 8083433 is an electromechanical linear axis featuring an integrated actuator, ball screw, and recirculating ball bearing guide supporting a size 32 profile, an 8 mm screw diameter, and an 8 mm/U spindle pitch with any mounting position. This unit provides a working stroke from 100 mm to 800 mm, a repetition accuracy of ±0.015 mm, a max speed of 0.18 m/s, and a max acceleration ranging from 3 m/s² to 5 m/s² at a 100% duty cycle. Operational monitoring is handled by a magnetic absolute single-turn encoder for rotor position sensing, motor encoder and proximity switch position sensing, an integrated CMOS temperature sensor for over-temperature shutdown, and LED display diagnostics with configurable digital logic outputs. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8083433
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8083433.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 100 mm...800 mm
- Size
- 32
- Stroke reserve
- 0 mm
- Screw diameter
- 8 mm
- Spindle pitch
- 8 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With ball screw | With integrated actuator
- Position sensing
- Motor encoder | Via proximity switch
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Temperature monitoring
- Shutdown in the event of over temperature | Integrated precise CMOS temperature sensor with analogue output
- Additional functions
- User interface | Integrated end-position sensing
- Display
- LED
- Max. acceleration
- 3 m/s²...5 m/s²
- Max. speed
- 0.18 m/s
- Repetition accuracy
- ±0.015 mm
- Characteristics of digital logic outputs
- Congurable | Not galvanically isolated
- Duty cycle
- 100%
- Insulation protection class
- B
- Max. current of digital logic outputs
- 100 mA
- Max. current consumption
- 3 A
- Logic max. current consumption
- 0.3 A
- DC nominal voltage
- 24 V
- Nominal current
- 3 A
- Parameterization interface
- IO-Link® | User interface
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8083433. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
