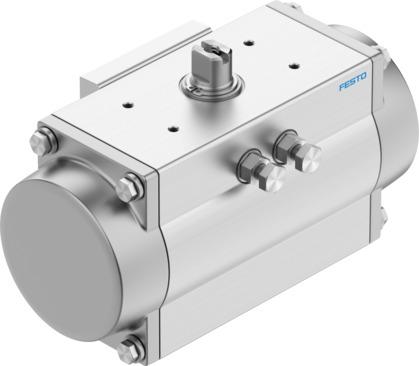

Name: Festo 8083512 Quarter turn actuator DFPD-60-RP-90-RS30-F0507
Brand: Festo

Quarter turn actuator DFPD-60-RP-90-RS30-F0507

The Festo 8083512 is a single-acting industrial component featuring a gear rack and pinion structural design with a size 60 valve actuator and a 90-degree swivel angle. Operating within a pressure range of 2 bar to 8 bar (29 psi to 116 psi) at a nominal operating pressure of 3 bar (43.5 psi), this safety device utilizes spring force to switch to the defined safety switching position when compressed air is switched off and the spring chamber is exhausted. It includes an ISO 5211 standard connection for valves, an F0507 flange hole pattern, a 16 mm shaft connection depth, and VDI/VDE 3845 (NAMUR) valve connections conforming to size AA 1 positioner and position sensor connection points. Certified for safety functions to ISO 13849 and IEC 61508, the unit supports SIL 2 low demand mode, SIL 1 high demand mode, and SIL 3 in a redundant architecture, with a burst pressure of 24 bar, an end-position adjusting range of -5 degrees to 5 degrees at both 0 degrees and the nominal swivel angle, and a right-closing direction for mounting in any position. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8083512
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8083512.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 60
Flange hole pattern: F0507
Swivel angle: 90 deg
End-position adjusting range at 0°: -5 deg...5 deg
End-position adjusting range at nominal swivel angle: -5 deg...5 deg
Depth shaft connection: 16 mm
Standard connection for valve: ISO 5211
Mounting position: Any
Mode of operation: Single-acting
Structural design: Gear rack/pinion
Closing direction: Closes to the right
Valve connection conforms to standard: VDI/VDE 3845 (NAMUR)
Connection point for positioner and position sensor conforms to: VDI/VDE 3845 Size AA 1
Devices type according to VDMA 66413: Safety device
Safety function: The safety function consists of the actuator switching to the dened | safety switching position when the compressed air is switched oﬀ and | the spring chamber is exhausted. This switching movement is achieved | through the spring force of the spring assembly.
Safety integrity level (SIL): Up to SIL 2 low demand mode | up to SIL 3 in a redundant architecture | up to SIL 1 high demand mode
Certied for safety function to ISO 13849 and IEC 61508 (SIL): Product can be used in safety-related parts of control systems up to SIL | 2, low demand | Product can be used in safety-related parts of control systems up to SIL | 1, high demand | up to SIL 3 in a redundant architecture
Burst pressure: 24 bar
Operating pressure: 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
Nominal operating pressure: 0.3 MPa | 3 bar | 43.5 psi
Maritime classication: See certicate
