Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8083543

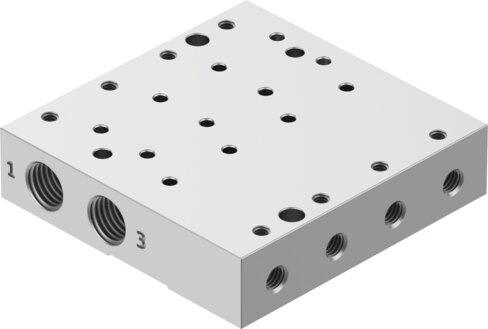

Manifold rail VABM-P6-15M-G18-M5-4
The Festo industrial component, part number 8083543, features a wrought aluminum alloy manifold rail with a width dimension of 15 mm and a lateral connection direction structural design. This 140 g unit accommodates a maximum of 4 valve positions, incorporates G1/8 pneumatic connection 1 and M5 pneumatic connection 2, and requires a maximum tightening torque of 0.6 Nm for valve mounting. Built with RoHS compliant materials, the assembly attains corrosion resistance class CRC 2 for moderate corrosion stress and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8083543
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8083543.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 15 mm
- Structural design
- Lateral connection direction
- Max. no. of valve positions
- 4
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Max. tightening torque for valve mounting
- 0.6 Nm
- Product weight
- 140 g
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- M5
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8083543. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
