Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

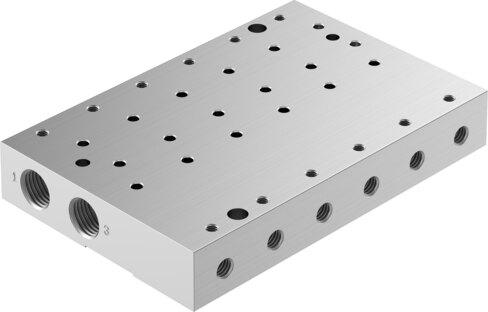

Reference imageConfirm configuration by manufacturer part number.
Festo
8083545
Manifold rail VABM-P6-15M-G18-M5-6
The Festo 8083545 is an industrial component featuring a wrought aluminum alloy manifold rail with a 15 mm width and a lateral connection direction. It accommodates a maximum of six valve positions, incorporates G1/8 pneumatic connection 1 and M5 pneumatic connection 2, and weighs 210 g with RoHS-compliant materials. The assembly maintains a corrosion resistance class of CRC 2 for moderate corrosion stress, VDMA24364-B2-L LABS conformity, and a maximum tightening torque of 0.6 Nm for valve mounting. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8083545
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8083545.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 15 mm
- Structural design
- Lateral connection direction
- Max. no. of valve positions
- 6
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Max. tightening torque for valve mounting
- 0.6 Nm
- Product weight
- 210 g
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- M5
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8083545. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
