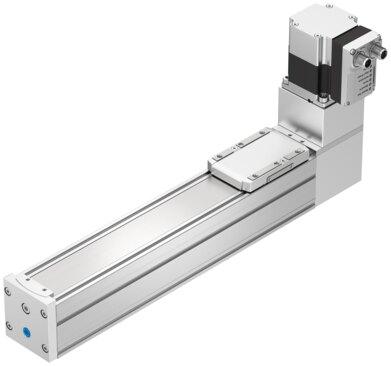

Reference imageConfirm configuration by manufacturer part number.
Festo
8083557
Toothed belt axis unit ELGS-TB-KF-60-
The Festo 8083557 is an electromechanical linear axis of size 60 featuring an integrated actuator, toothed belt drive with a 3 mm pitch, and a recirculating ball bearing guide configured for horizontal mounting positions. This unit provides a working stroke from 50 mm to 2000 mm, a 24.83 mm drive pinion effective diameter, 0.124% toothed belt elongation, a maximum speed ranging from 1.04 m/s to 1.3 m/s, a maximum acceleration of 6 m/s², and a repetition accuracy of ±0.1 mm at a 100% duty cycle. Position sensing is achieved via a motor encoder and proximity switches, supported by an absolute single-turn magnetic rotor position sensor, configurable digital logic outputs, an LED display, user interface, integrated end-position sensing, and overtemperature shutdown via an integrated CMOS temperature sensor with analog output. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8083557
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8083557.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 24.83 mm
- Working stroke
- 50 mm...2000 mm
- Size
- 60
- Stroke reserve
- 0 mm
- Toothed belt elongation
- 0.124 %
- Toothed belt pitch
- 3 mm
- Mounting position
- Horizontal
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt | With integrated actuator
- Position sensing
- Motor encoder | Via proximity switch
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Temperature monitoring
- Shutdown in the event of over temperature | Integrated precise CMOS temperature sensor with analogue output
- Additional functions
- User interface | Integrated end-position sensing
- Display
- LED
- Max. acceleration
- 6 m/s²
- Max. speed
- 1.04 m/s...1.3 m/s
- Repetition accuracy
- ±0.1 mm
- Characteristics of digital logic outputs
- Congurable
- Duty cycle
- 100%
- Insulation protection class
- B
- Max. current of digital logic outputs
- 100 mA
- Max. current consumption
- 5.3 A
- Logic max. current consumption
- 0.3 A
- DC nominal voltage
- 24 V
- Nominal current
- 5.3 A
- Permissible voltage uctuations
- +/-15%
- Power supply, type of connection
- Plug
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8083557. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
