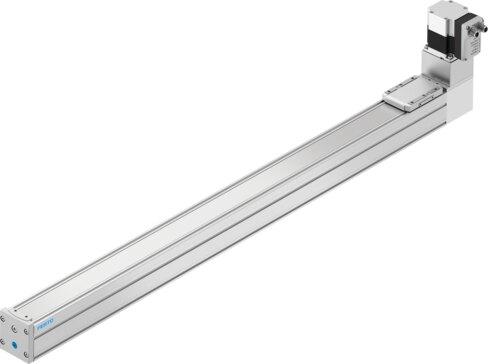

Name: Festo 8083574 Toothed belt axis unit ELGS-TB-KF-60-800-ST-M-H1-PLK-AA
Brand: Festo

Toothed belt axis unit ELGS-TB-KF-60-800-ST-M-H1-PLK-AA

The Festo 8083574 is a size 60 electromechanical linear axis featuring an integrated actuator, recirculating ball bearing guide, and toothed belt with a 24.83 mm effective diameter, 3 mm pitch, and 0.124 % belt elongation. This horizontal mounting component delivers a 800 mm working stroke with zero stroke reserve, supporting a maximum speed of 1.3 m/s, a maximum acceleration of 6 m/s², and a 100% duty cycle while maintaining a repetition accuracy of ±0.1 mm. System feedback and monitoring are provided via a motor encoder, proximity switch sensing, an absolute single-turn magnetic rotor position sensor, an integrated CMOS temperature sensor with analog output for overtemperature shutdown, and an LED user interface with integrated end-position sensing and configurable digital logic outputs. Submit the exact part number, quantity, and application requirements to receive a quote for this Festo component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8083574
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8083574.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Drive pinion eﬀective diameter: 24.83 mm
Working stroke: 800 mm
Size: 60
Stroke reserve: 0 mm
Toothed belt elongation: 0.124 %
Toothed belt pitch: 3 mm
Mounting position: Horizontal
Guide: Recirculating ball bearing
Structural design: Electromechanical linear axis | With toothed belt | With integrated actuator
Position sensing: Motor encoder | Via proximity switch
Rotor position sensor: Absolute single-turn encoder
Rotor position sensor measuring principle: Magnetic
Temperature monitoring: Shutdown in the event of over temperature | Integrated precise CMOS temperature sensor with analogue output
Additional functions: User interface | Integrated end-position sensing
Display: LED
Max. acceleration: 6 m/s²
Max. speed: 1.3 m/s
Repetition accuracy: ±0.1 mm
Characteristics of digital logic outputs: Congurable | Not galvanically isolated
Duty cycle: 100%
Insulation protection class: B
Max. current of digital logic outputs: 100 mA
Max. current consumption: 5.3 A
Logic max. current consumption: 0.3 A
DC nominal voltage: 24 V
Nominal current: 5.3 A
Parameterization interface: IO-Link®

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8083574. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
