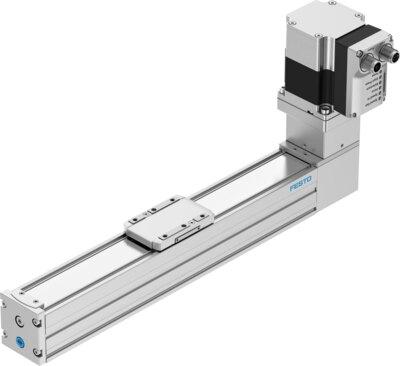

Reference imageConfirm configuration by manufacturer part number.
Festo
8083664
Toothed belt axis unit ELGS-TB-KF-45-
The Festo 8083664 is an electromechanical linear axis of size 45 featuring an integrated actuator, a recirculating ball bearing guide, and a toothed belt with a 2 mm pitch and 19.1 mm effective drive pinion diameter supporting a working stroke from 50 mm to 1500 mm. Operating at a 100% duty cycle in a horizontal mounting position, this component delivers a maximum speed of 0.96 m/s to 1.2 m/s, a maximum acceleration of 6 m/s², and a repetition accuracy of ±0.1 mm with a 0.187% toothed belt elongation. Position sensing is accomplished via a motor encoder or proximity switch alongside an absolute single-turn magnetic rotor position sensor, while thermal management utilizes an integrated precise CMOS temperature sensor with analog output for overtemperature shutdown. Additional functional capabilities include a user interface with an LED display, integrated end-position sensing, and configurable digital logic outputs. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8083664
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8083664.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 19.1 mm
- Working stroke
- 50 mm...1500 mm
- Size
- 45
- Stroke reserve
- 0 mm
- Toothed belt elongation
- 0.187 %
- Toothed belt pitch
- 2 mm
- Mounting position
- Horizontal
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt | With integrated actuator
- Position sensing
- Motor encoder | Via proximity switch
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Temperature monitoring
- Shutdown in the event of over temperature | Integrated precise CMOS temperature sensor with analogue output
- Additional functions
- User interface | Integrated end-position sensing
- Display
- LED
- Max. acceleration
- 6 m/s²
- Max. speed
- 0.96 m/s...1.2 m/s
- Repetition accuracy
- ±0.1 mm
- Characteristics of digital logic outputs
- Congurable
- Duty cycle
- 100%
- Insulation protection class
- B
- Max. current of digital logic outputs
- 100 mA
- Max. current consumption
- 5.3 A
- Logic max. current consumption
- 0.3 A
- DC nominal voltage
- 24 V
- Nominal current
- 5.3 A
- Permissible voltage uctuations
- +/-15%
- Power supply, type of connection
- Plug
