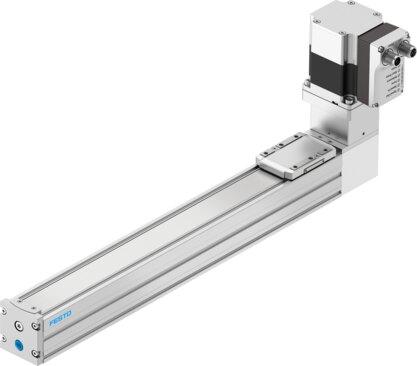

Reference imageConfirm configuration by manufacturer part number.
Festo
8083666
Toothed belt axis unit ELGS-TB-KF-45-300-ST-M-H1-PLK-AA
The Festo 8083666 is an electromechanical linear axis of size 45 featuring an integrated actuator, recirculating ball bearing guide, and toothed belt with a 2 mm pitch, 0.187% elongation, and 19.1 mm effective drive pinion diameter configured for horizontal mounting positions. This component provides a 300 mm working stroke with 0 mm stroke reserve, supporting a maximum speed of 1.2 m/s, a maximum acceleration of 6 m/s^2, a 100% duty cycle, and a repetition accuracy of plus or minus 0.1 mm. System feedback and monitoring are handled by a magnetic absolute single-turn encoder rotor position sensor, motor encoder, proximity switch position sensing, LED display, configurable non-galvanically isolated digital logic outputs, and an integrated CMOS temperature sensor with an analogue output for overtemperature shutdown. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8083666
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8083666.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 19.1 mm
- Working stroke
- 300 mm
- Size
- 45
- Stroke reserve
- 0 mm
- Toothed belt elongation
- 0.187 %
- Toothed belt pitch
- 2 mm
- Mounting position
- Horizontal
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt | With integrated actuator
- Position sensing
- Motor encoder | Via proximity switch
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Temperature monitoring
- Shutdown in the event of over temperature | Integrated precise CMOS temperature sensor with analogue output
- Additional functions
- User interface | Integrated end-position sensing
- Display
- LED
- Max. acceleration
- 6 m/s²
- Max. speed
- 1.2 m/s
- Repetition accuracy
- ±0.1 mm
- Characteristics of digital logic outputs
- Congurable | Not galvanically isolated
- Duty cycle
- 100%
- Insulation protection class
- B
- Max. current of digital logic outputs
- 100 mA
- Max. current consumption
- 5.3 A
- Logic max. current consumption
- 0.3 A
- DC nominal voltage
- 24 V
- Nominal current
- 5.3 A
- Parameterization interface
- IO-Link®
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8083666. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
