Festo
8083713

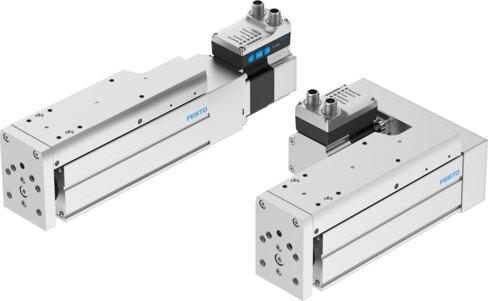

Mini slide unit EGSS-BS-KF-60-
The Festo industrial component, part number 8083713, is an electrical mini-slide featuring an integrated actuator, a ball screw with a 12 mm screw diameter and 12 mm/U spindle pitch, and a recirculating ball bearing guide. This unit delivers a working stroke of 50 mm to 200 mm, a 0 mm stroke reserve, a repetition accuracy of ±0.015 mm, a max speed ranging from 0.205 m/s to 0.24 m/s, and a max acceleration of 3 m/s² to 0.24 m/s² with a 100% duty cycle and insulation protection class B. It is equipped with position sensing via a motor encoder and proximity switch, an absolute single-turn magnetic rotor position sensor, a user interface, integrated end-position sensing, and an LED display for configurable digital logic outputs. Submit your exact part number, quantity, and application requirements to receive a formal quotation for this unit.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8083713
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8083713.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 50 mm...200 mm
- Size
- 60
- Stroke reserve
- 0 mm
- Screw diameter
- 12 mm
- Spindle pitch
- 12 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electrical mini-slide | With ball screw | With integrated actuator
- Spindle type
- Ball screw
- Position sensing
- Motor encoder | Via proximity switch
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Additional functions
- User interface | Integrated end-position sensing
- Display
- LED
- Max. acceleration
- 3 m/s²...5 m/s²
- Max. speed
- 0.205 m/s...0.24 m/s
- Repetition accuracy
- ±0.015 mm
- Characteristics of digital logic outputs
- Congurable | Not galvanically isolated
- Duty cycle
- 100%
- Insulation protection class
- B
- Max. current of digital logic outputs
- 100 mA
- Max. current consumption
- 5.3 A
- Logic max. current consumption
- 300 mA
- DC nominal voltage
- 24 V
- Nominal current
- 5.3 A
- Parameterization interface
- IO-Link® | User interface
- Permissible voltage uctuations
- +/-15%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8083713. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
