8083717

Name: Festo 8083717 Mini slide unit EGSS-BS-KF-60-75-12P-ST-M-H1-PLK-AA
Brand: Festo

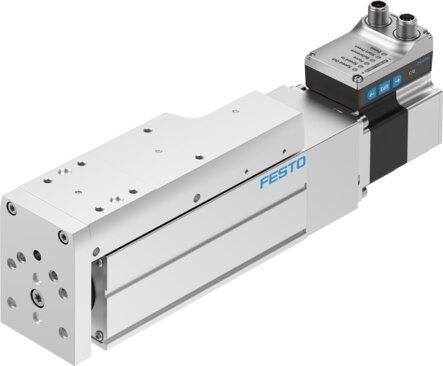

Mini slide unit EGSS-BS-KF-60-75-12P-ST-M-H1-PLK-AA

The Festo 8083717 is an electrical mini-slide featuring an integrated actuator and a ball screw with a 12 mm screw diameter and 12 mm/U spindle pitch, configured with a recirculating ball bearing guide and a 75 mm working stroke with 0 mm stroke reserve. This component achieves a maximum speed of 0.24 m/s, a maximum acceleration of 5 m/s², and a repetition accuracy of ±0.015 mm across a 100% duty cycle with class B insulation protection. It includes position sensing via a motor encoder and proximity switch, an absolute single-turn magnetic rotor position sensor, a user interface with an LED display, and configurable, non-galvanically isolated digital logic outputs supporting any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8083717
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8083717.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working stroke: 75 mm
Size: 60
Stroke reserve: 0 mm
Screw diameter: 12 mm
Spindle pitch: 12 mm/U
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Electrical mini-slide | With ball screw | With integrated actuator
Spindle type: Ball screw
Position sensing: Motor encoder | Via proximity switch
Rotor position sensor: Absolute single-turn encoder
Rotor position sensor measuring principle: Magnetic
Additional functions: User interface | Integrated end-position sensing
Display: LED
Max. acceleration: 5 m/s²
Max. speed: 0.24 m/s
Repetition accuracy: ±0.015 mm
Characteristics of digital logic outputs: Congurable | Not galvanically isolated
Duty cycle: 100%
Insulation protection class: B
Max. current of digital logic outputs: 100 mA
Max. current consumption: 5.3 A
Logic max. current consumption: 300 mA
DC nominal voltage: 24 V
Nominal current: 5.3 A
Parameterization interface: IO-Link® | User interface
Permissible voltage uctuations: +/-15%

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8083717. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
