Festo
8083718

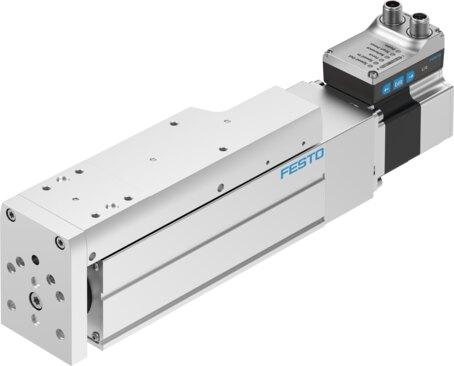

Mini slide unit EGSS-BS-KF-60-100-12P-ST-M-H1-PLK-AA
The Festo 8083718 is an electrical mini-slide featuring a ball screw with a 12 mm screw diameter, a 12 mm/U spindle pitch, and a 100 mm working stroke with zero stroke reserve. This component utilizes a recirculating ball bearing guide, an integrated actuator, an absolute single-turn magnetic rotor position sensor, and a motor encoder, achieving a repetition accuracy of ±0.015 mm, a maximum speed of 0.24 m/s, and a maximum acceleration of 5 m/s². Equipped with an LED display, a user interface, and integrated end-position sensing, the unit operates at a 100% duty cycle within insulation protection class B, supports any mounting position, and features configurable, non-galvanically isolated digital logic outputs. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8083718
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8083718.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 100 mm
- Size
- 60
- Stroke reserve
- 0 mm
- Screw diameter
- 12 mm
- Spindle pitch
- 12 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electrical mini-slide | With ball screw | With integrated actuator
- Spindle type
- Ball screw
- Position sensing
- Motor encoder | Via proximity switch
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Additional functions
- User interface | Integrated end-position sensing
- Display
- LED
- Max. acceleration
- 5 m/s²
- Max. speed
- 0.24 m/s
- Repetition accuracy
- ±0.015 mm
- Characteristics of digital logic outputs
- Congurable | Not galvanically isolated
- Duty cycle
- 100%
- Insulation protection class
- B
- Max. current of digital logic outputs
- 100 mA
- Max. current consumption
- 5.3 A
- Logic max. current consumption
- 300 mA
- DC nominal voltage
- 24 V
- Nominal current
- 5.3 A
- Parameterization interface
- IO-Link® | User interface
- Permissible voltage uctuations
- +/-15%
