Name: Festo 8083719 Mini slide unit EGSS-BS-KF-60-125-12P-ST-M-H1-PLK-AA
Brand: Festo

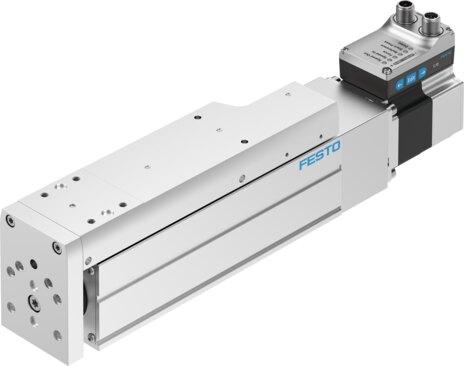

Mini slide unit EGSS-BS-KF-60-125-12P-ST-M-H1-PLK-AA

The Festo part number 8083719 is an electrical mini-slide featuring an integrated actuator, ball screw structural design, size 60 dimensions, and a 12 mm screw diameter with a 12 mm/U spindle pitch. This component includes a recirculating ball bearing guide, a 125 mm working stroke with 0 mm stroke reserve, and supports any mounting position with a 100% duty cycle, Class B insulation protection, maximum speed of 0.24 m/s, maximum acceleration of 5 m/s², and repetition accuracy of ±0.015 mm. Functional equipment encompasses an absolute single-turn magnetic rotor position sensor, motor encoder or proximity switch position sensing, a user interface with an LED display, and configurable, non-galvanically isolated digital logic outputs. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8083719
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8083719.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working stroke: 125 mm
Size: 60
Stroke reserve: 0 mm
Screw diameter: 12 mm
Spindle pitch: 12 mm/U
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Electrical mini-slide | With ball screw | With integrated actuator
Spindle type: Ball screw
Position sensing: Motor encoder | Via proximity switch
Rotor position sensor: Absolute single-turn encoder
Rotor position sensor measuring principle: Magnetic
Additional functions: User interface | Integrated end-position sensing
Display: LED
Max. acceleration: 5 m/s²
Max. speed: 0.24 m/s
Repetition accuracy: ±0.015 mm
Characteristics of digital logic outputs: Congurable | Not galvanically isolated
Duty cycle: 100%
Insulation protection class: B
Max. current of digital logic outputs: 100 mA
Max. current consumption: 5.3 A
Logic max. current consumption: 300 mA
DC nominal voltage: 24 V
Nominal current: 5.3 A
Parameterization interface: IO-Link® | User interface
Permissible voltage uctuations: +/-15%
