Festo
8083776

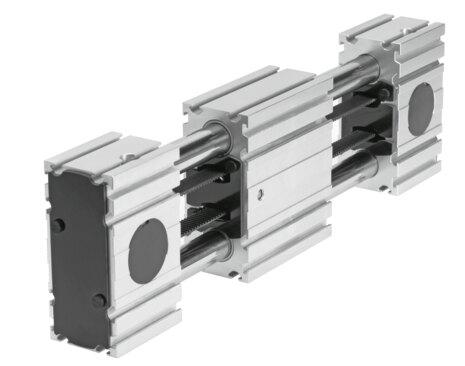

Belt driven linear actuator ELGR-TB-45-100-0H
This Festo size 45 electromechanical linear axis features a toothed belt with a 3 mm pitch, a 24.83 mm drive pinion effective diameter, and a 100 mm working stroke supported by an integrated recirculating ball bearing guide. Built for continuous operation with a 100% duty cycle, the unit accommodates stepper or servo motors to deliver a maximum speed ranging from 1 m/s to 3 m/s, a maximum acceleration of 50 m/s², a repetition accuracy of ±0.1 mm, and a maximum driving torque of 1.24 Nm. The assembly achieves a maximum force Fy of 100 N, a toothed belt elongation of 0.08%, and second moments of area Iy of 15700 mm⁴ and Iz of 17940 mm⁴ while maintaining IP20 protection and VDMA24364 Zone III LABS conformity across ambient temperatures from -10 °C to 50 °C in any mounting position. Submit the exact part number 8083776, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8083776
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8083776.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 24.83 mm
- Working stroke
- 100 mm
- Size
- 45
- Toothed belt elongation
- 0.08 %
- Toothed belt pitch
- 3 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Max. acceleration
- 50 m/s²
- Max. speed
- 1 m/s...3 m/s
- Repetition accuracy
- ±0.1 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP20
- Ambient temperature
- -10 °C...50 °C
- 2nd moment of area Iy
- 15700 mm⁴
- 2nd moment of area Iz
- 17940 mm⁴
- Max. driving torque
- 1.24 Nm
- Max. force Fy
- 100 N
- Max. force Fz
- 100 N
- Max. no-load resistance to shifting
- 16.1 N
- Max. feed force Fx
- 100 N
- No-load driving torque
- 0.2 Nm
- Mass moment of inertia JH per meter of stroke
- 0.11 kgcm²
- Mass moment of inertia JL per kg of payload
- 1.54 kgcm²
- Feed constant
- 78 mm/U
- Reference service life
- 5000 km
- Additional moving mass per 10 mm stroke
- 0.69 g
- Product weight
- 3730 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8083776. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
