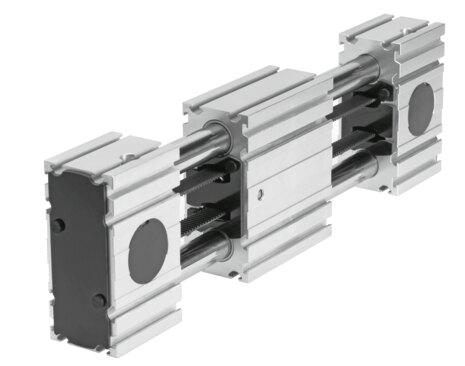

Reference imageConfirm configuration by manufacturer part number.
Festo
8083779
Belt driven linear actuator ELGR-TB-45-400-0H
The Festo electromechanical linear axis, part number 8083779, features a size 45 structural design with an integrated toothed belt, a 400 mm working stroke, and a recirculating ball bearing guide. This unit achieves a maximum acceleration of 50 m/s², operating speeds between 1 m/s and 3 m/s, and a repetition accuracy of ±0.1 mm driven by either a stepper or servo motor. Built with a 24.83 mm drive pinion effective diameter and a 100% duty cycle, the assembly provides an IP20 degree of protection for ambient temperatures ranging from -10 °C to 50 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8083779
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8083779.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 24.83 mm
- Working stroke
- 400 mm
- Size
- 45
- Toothed belt elongation
- 0.08 %
- Toothed belt pitch
- 3 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt
- Motor type
- Stepper motor | Servo motor
- Max. acceleration
- 50 m/s²
- Max. speed
- 1 m/s...3 m/s
- Repetition accuracy
- ±0.1 mm
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP20
- Ambient temperature
- -10 °C...50 °C
- 2nd moment of area Iy
- 15700 mm⁴
- 2nd moment of area Iz
- 17940 mm⁴
- Max. driving torque
- 1.24 Nm
- Max. force Fy
- 100 N
- Max. force Fz
- 100 N
- Max. no-load resistance to shifting
- 16.1 N
- Max. feed force Fx
- 100 N
- No-load driving torque
- 0.2 Nm
- Mass moment of inertia JH per meter of stroke
- 0.11 kgcm²
- Mass moment of inertia JL per kg of payload
- 1.54 kgcm²
- Feed constant
- 78 mm/U
- Reference service life
- 5000 km
- Additional moving mass per 10 mm stroke
- 0.69 g
- Product weight
- 5230 g
