Festo
8083800

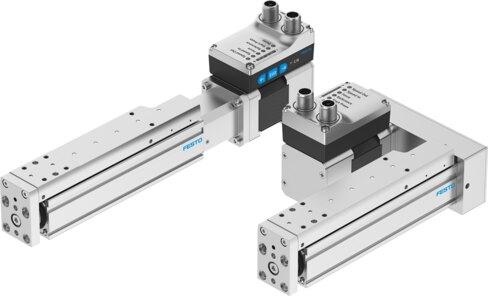

Mini slide unit EGSS-BS-KF-32-
The Festo part number 8083800 is an electrical mini-slide featuring an integrated actuator, ball screw design, and a recirculating ball bearing guide with a size 32 and an 8 mm screw diameter. This component delivers a working stroke between 25 mm and 100 mm, an 8 mm/U spindle pitch, a maximum speed of 0.19 m/s, an acceleration range of 3 m/s² to 5 m/s², and a repetition accuracy of ±0.015 mm with a 100% duty cycle. It operates in any mounting position and incorporates a magnetic absolute single-turn encoder rotor position sensor, motor encoder or proximity switch position sensing, a user interface with an LED display, and configurable digital logic outputs with insulation protection class B. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8083800
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8083800.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 25 mm...100 mm
- Size
- 32
- Stroke reserve
- 0 mm
- Screw diameter
- 8 mm
- Spindle pitch
- 8 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electrical mini-slide | With ball screw | With integrated actuator
- Spindle type
- Ball screw
- Position sensing
- Motor encoder | Via proximity switch
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Additional functions
- User interface | Integrated end-position sensing
- Display
- LED
- Max. acceleration
- 3 m/s²...5 m/s²
- Max. speed
- 0.19 m/s
- Repetition accuracy
- ±0.015 mm
- Characteristics of digital logic outputs
- Congurable | Not galvanically isolated
- Duty cycle
- 100%
- Insulation protection class
- B
- Max. current of digital logic outputs
- 100 mA
- Max. current consumption
- 3 A
- Logic max. current consumption
- 300 mA
- DC nominal voltage
- 24 V
- Nominal current
- 3 A
- Parameterization interface
- IO-Link® | User interface
- Permissible voltage uctuations
- +/-15%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8083800. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
