Festo
8083819

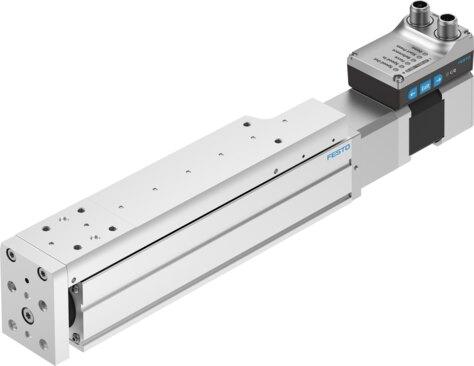

Mini slide unit EGSS-BS-KF-45-150-10P-ST-M-H1-PLK-AA
The Festo 8083819 is an electrical mini-slide featuring an integrated actuator and ball screw with a size of 45, a 150 mm working stroke, a 10 mm screw diameter, and a 10 mm/U spindle pitch. It operates with a recirculating ball bearing guide in any mounting position, delivering a maximum speed of 0.25 m/s, a maximum acceleration of 5 m/s², a repetition accuracy of ±0.015 mm, and a 100% duty cycle under insulation protection class B. Position sensing is accomplished via a motor encoder, proximity switch, and magnetic absolute single-turn encoder rotor position sensor, complemented by an LED display, user interface, integrated end-position sensing, and configurable non-galvanically isolated digital logic outputs with zero stroke reserve. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8083819
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8083819.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 150 mm
- Size
- 45
- Stroke reserve
- 0 mm
- Screw diameter
- 10 mm
- Spindle pitch
- 10 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electrical mini-slide | With ball screw | With integrated actuator
- Spindle type
- Ball screw
- Position sensing
- Motor encoder | Via proximity switch
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Additional functions
- User interface | Integrated end-position sensing
- Display
- LED
- Max. acceleration
- 5 m/s²
- Max. speed
- 0.25 m/s
- Repetition accuracy
- ±0.015 mm
- Characteristics of digital logic outputs
- Congurable | Not galvanically isolated
- Duty cycle
- 100%
- Insulation protection class
- B
- Max. current of digital logic outputs
- 100 mA
- Max. current consumption
- 3 A
- Logic max. current consumption
- 300 mA
- DC nominal voltage
- 24 V
- Nominal current
- 3 A
- Parameterization interface
- IO-Link® | User interface
- Permissible voltage uctuations
- +/-15%
