Festo
8083932

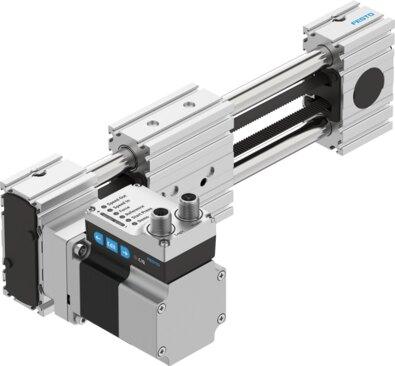

Toothed belt axis unit ELGE-TB-35-200-0H-ST-M-H1-PLK-AA-AT-FR
The Festo 8083932 is an electromechanical linear axis of size 35 featuring an integrated actuator, toothed belt with a 2 mm pitch, 18.46 mm drive pinion effective diameter, and a recirculating ball bearing guide configured for horizontal mounting positions. This unit achieves a 200 mm working stroke, 1.08 m/s maximum speed, 8.5 m/s² maximum acceleration, and ±0.1 mm repetition accuracy at a 100% duty cycle, incorporating an absolute single-turn magnetic rotor position sensor, LED display, user interface, and an integrated CMOS temperature sensor with analog output for overtemperature shutdown. Position sensing occurs via motor encoder and proximity switch, supported by configurable non-galvanically isolated digital logic outputs, Class B insulation protection, and a 0.094% toothed belt elongation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8083932
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8083932.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 18.46 mm
- Working stroke
- 200 mm
- Size
- 35
- Toothed belt elongation
- 0.094 %
- Toothed belt pitch
- 2 mm
- Mounting position
- Horizontal
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt | With integrated actuator
- Position sensing
- Motor encoder | Via proximity switch
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Temperature monitoring
- Shutdown in the event of over temperature | Integrated precise CMOS temperature sensor with analogue output
- Additional functions
- User interface | Integrated end-position sensing
- Display
- LED
- Max. acceleration
- 8.5 m/s²
- Max. speed
- 1.08 m/s
- Repetition accuracy
- ±0.1 mm
- Characteristics of digital logic outputs
- Congurable | Not galvanically isolated
- Duty cycle
- 100%
- Insulation protection class
- B
- Max. current of digital logic outputs
- 100 mA
- Max. current consumption
- 5.3 A
- Logic max. current consumption
- 0.3 A
- DC nominal voltage
- 24 V
- Nominal current
- 5.3 A
- Parameterization interface
- IO-Link® | User interface
