Festo
8083935

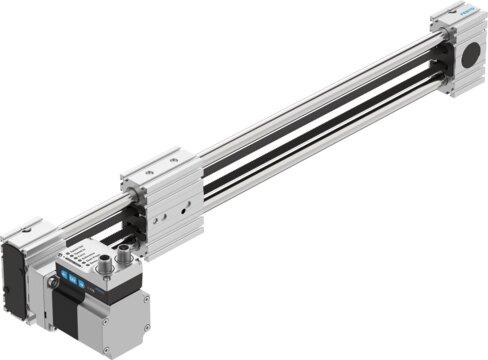

Toothed belt axis unit ELGE-TB-35-500-0H-ST-M-H1-PLK-AA-AT-FR
The Festo part number 8083935 is an electromechanical linear axis of size 35 featuring an integrated actuator, a recirculating ball bearing guide, and a 500 mm working stroke driven by a toothed belt with a 2 mm pitch, an 18.46 mm effective diameter, and a 0.094 % elongation. This horizontal mounting configuration achieves a maximum speed of 1.2 m/s, a maximum acceleration of 8.5 m/s², a repetition accuracy of ±0.1 mm, and a 100% duty cycle within insulation protection class B. Position sensing is accomplished via a motor encoder, proximity switch, and an absolute single-turn magnetic rotor position sensor, complemented by a user interface, LED display, integrated end-position sensing, and an integrated precise CMOS temperature sensor with an analogue output for overtemperature shutdown. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8083935
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8083935.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion effective diameter
- 18.46 mm
- Working stroke
- 500 mm
- Size
- 35
- Toothed belt elongation
- 0.094 %
- Toothed belt pitch
- 2 mm
- Mounting position
- Horizontal
- Guide
- Recirculating ball bearing
- Structural design
- Electromechanical linear axis | With toothed belt | With integrated actuator
- Position sensing
- Motor encoder | Via proximity switch
- Rotor position sensor
- Absolute single-turn encoder
- Rotor position sensor measuring principle
- Magnetic
- Temperature monitoring
- Shutdown in the event of over temperature | Integrated precise CMOS temperature sensor with analogue output
- Additional functions
- User interface | Integrated end-position sensing
- Display
- LED
- Max. acceleration
- 8.5 m/s²
- Max. speed
- 1.2 m/s
- Repetition accuracy
- ±0.1 mm
- Characteristics of digital logic outputs
- Congurable | Not galvanically isolated
- Duty cycle
- 100%
- Insulation protection class
- B
- Max. current of digital logic outputs
- 100 mA
- Max. current consumption
- 5.3 A
- Logic max. current consumption
- 0.3 A
- DC nominal voltage
- 24 V
- Nominal current
- 5.3 A
- Parameterization interface
- IO-Link® | User interface
