Festo
8084034

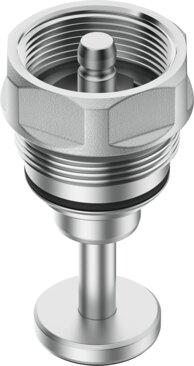

Cover kit VAVC-F12-SCC-32-TP
The Festo part number 8084034 is an industrial component featuring a nominal width DN of 32 and ATEX explosion protection for Zone 1, Zone 2, Zone 21, and Zone 22. Constructed with a high-alloy stainless steel cover, PTFE spindle seal, and modified PTFE seat seal, this 424 g unit operates within a medium temperature range of -30 °C to 200 °C and an ambient temperature range of 0 °C to 60 °C, supporting media such as filtered compressed air, inert gas, water, vapor, mineral oil, and neutral liquids. It complies with VDMA24364 Zone III LABS conformity and RoHS material requirements while allowing any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8084034
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8084034.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width DN
- 32
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Medium
- Vapor | Hydraulic uid based on mineral oil | Inert gas | Mineral oil | Water | Filtered compressed air, 200 µm lter mesh | Neutral liquids
- Information on medium
- Gaseous media are only permitted with inow via valve seat.
- Temperature of medium
- -30 °C...200 °C
- Ambient temperature
- 0 °C...60 °C
- Storage temperature
- -10 °C...60 °C
- Mounting position
- Any
- Product weight
- 424 g
- Note on materials
- RoHS compliant
- Cover material
- high-alloy stainless steel
- Spindle seal material
- PTFE
- Seat seal material
- PTFE, modied
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8084034. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
