Festo
8084035

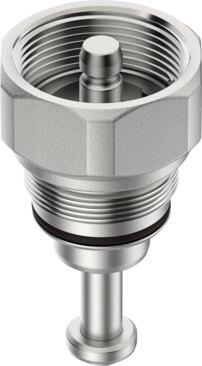

Cover kit VAVC-F12-SCC-13-TP
The Festo part number 8084035 is an industrial component featuring a nominal width DN of 13 and a product weight of 358 g with RoHS-compliant materials including a high-alloy stainless steel cover, PTFE spindle seal, and modified PTFE seat seal. It operates with a medium temperature of -30 °C to 200 °C, an ambient temperature of 0 °C to 60 °C, and a storage temperature of -10 °C to 60 °C in any mounting position, while meeting VDMA24364 Zone III LABS conformity and ATEX certification for Zones 1, 2, 21, and 22. This component handles filtered compressed air with a 200 µm filter mesh, inert gas, vapor, mineral oil, hydraulic fluid based on mineral oil, neutral liquids, and gaseous media restricted to inflow via the valve seat. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8084035
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8084035.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width DN
- 13
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Medium
- Vapor | Hydraulic uid based on mineral oil | Inert gas | Mineral oil | Water | Filtered compressed air, 200 µm lter mesh | Neutral liquids
- Information on medium
- Gaseous media are only permitted with inow via valve seat.
- Temperature of medium
- -30 °C...200 °C
- Ambient temperature
- 0 °C...60 °C
- Storage temperature
- -10 °C...60 °C
- Mounting position
- Any
- Product weight
- 358 g
- Note on materials
- RoHS compliant
- Cover material
- high-alloy stainless steel
- Spindle seal material
- PTFE
- Seat seal material
- PTFE, modied
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8084035. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
