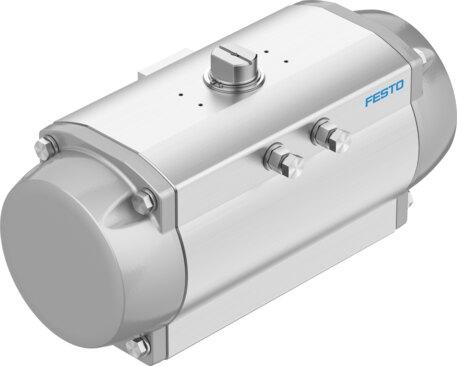

Name: Festo 8084143 Quarter turn actuator DFPD-1200-RP-90-RS60-F1012
Brand: Festo

Quarter turn actuator DFPD-1200-RP-90-RS60-F1012

The Festo part number 8084143 is a single-acting industrial component featuring a gear rack and pinion structural design with a valve actuator size of 1200 and a 90-degree swivel angle. Operating at a nominal pressure of 0.6 MPa, 6 bar, or 87 psi with an operating pressure range of 2 bar to 8 bar, this safety device achieves its safety function via spring force when compressed air is switched off and the spring chamber is exhausted. It includes an ISO 5211 standard connection for valves, an F1012 flange hole pattern, a 29 mm shaft connection depth, and VDI/VDE 3845 compliance for NAMUR valve connections and positioner mounting. Certified for safety functions up to SIL 2 in low demand mode and SIL 1 in high demand mode according to ISO 13849 and IEC 61508, the unit functions in any mounting position with a burst pressure of 24 bar. Submit the exact part number, quantity, and application requirements for a formal price quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8084143
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8084143.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 1200
Flange hole pattern: F1012
Swivel angle: 90 deg
End-position adjusting range at 0°: -5 deg...5 deg
End-position adjusting range at nominal swivel angle: -5 deg...5 deg
Depth shaft connection: 29 mm
Standard connection for valve: ISO 5211
Mounting position: Any
Mode of operation: Single-acting
Structural design: Gear rack/pinion
Closing direction: Closes to the right
Valve connection conforms to standard: VDI/VDE 3845 (NAMUR)
Connection point for positioner and position sensor conforms to: VDI/VDE 3845 Size AA 3
Devices type according to VDMA 66413: Safety device
Safety function: The safety function consists of the actuator switching to the dened | safety switching position when the compressed air is switched oﬀ and | the spring chamber is exhausted. This switching movement is achieved | through the spring force of the spring assembly.
Safety integrity level (SIL): Up to SIL 2 low demand mode | up to SIL 3 in a redundant architecture | up to SIL 1 high demand mode
Certied for safety function to ISO 13849 and IEC 61508 (SIL): Product can be used in safety-related parts of control systems up to SIL | 2, low demand | Product can be used in safety-related parts of control systems up to SIL | 1, high demand | up to SIL 3 in a redundant architecture
Burst pressure: 24 bar
Operating pressure: 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
Nominal operating pressure: 0.6 MPa | 6 bar | 87 psi
Maritime classication: See certicate
