Festo
8084186

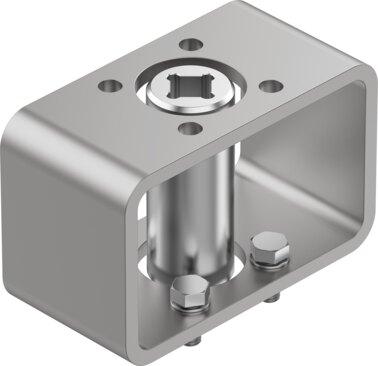

Mounting kit DARQ-K-V-F03S9-F03S9-R13
The Festo part number 8084186 is a 392 g industrial mounting kit featuring a structural design with a square drive and external square, manufactured in accordance with EN 15081 and ISO 5211 norms. Constructed with a steel mounting adapter alongside high-alloy stainless steel quick-coupling, disc, and screws, this RoHS-compliant component provides CRC 2 moderate corrosion stress resistance and VDMA24364 Zone III LABS conformity. It incorporates Connection 1 actuator outlet with SW9 design and hole pattern 03, paired with Connection 2 reducing outlet featuring SW9 design and hole pattern 03, and is supplied in a pack size of 1. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8084186
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8084186.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 15081 | ISO 5211
- Pack size
- 1
- Structural design
- Square drive and external square | Mounting kit
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Product weight
- 392 g
- Connection 1, function
- Actuator outlet
- Connection 1, design
- SW9 | Hole pattern 03
- Connection 2, function
- Reducing outlet
- Connection 2, design
- SW9 | Hole pattern 03
- Note on materials
- RoHS compliant
- Quick-coupling material
- high-alloy stainless steel
- Mounting adapter material
- Steel
- Disc material
- high-alloy stainless steel
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8084186. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
