Festo
8084191

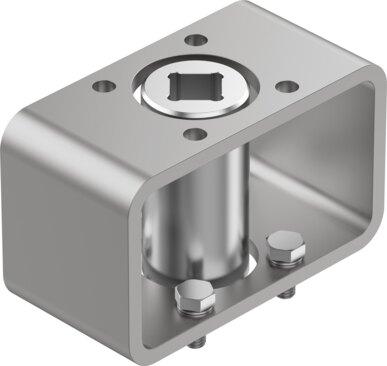

Mounting kit DARQ-K-V-F05S14-F05S14-R13
The Festo 8084191 industrial component is a mounting kit featuring a square drive and external square structural design conforming to EN 15081 and ISO 5211 norms. Weighing 830 g, it incorporates a steel mounting adapter alongside high-alloy stainless steel screws, a disc, and quick-coupling material that provide a corrosion resistance class of 2 for moderate corrosion stress and VDMA24364 Zone III LABS conformity with RoHS-compliant materials. Connection 1 and Connection 2 function as actuator and reducing outlets respectively, utilizing an SW14 design with hole pattern 05. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this pack size of 1.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8084191
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8084191.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 15081 | ISO 5211
- Pack size
- 1
- Structural design
- Square drive and external square | Mounting kit
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Product weight
- 830 g
- Connection 1, function
- Actuator outlet
- Connection 1, design
- SW14 | Hole pattern 05
- Connection 2, function
- Reducing outlet
- Connection 2, design
- SW14 | Hole pattern 05
- Note on materials
- RoHS compliant
- Quick-coupling material
- high-alloy stainless steel
- Mounting adapter material
- Steel
- Disc material
- high-alloy stainless steel
- Material of screws
- high-alloy stainless steel
