Festo
8084198

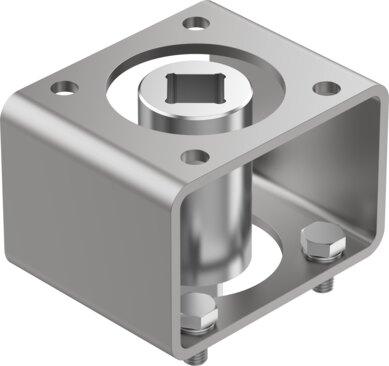

Mounting kit DARQ-K-V-F10S22-F10S22-R13
This Festo industrial component, part number 8084198, is a mounting kit featuring a square drive and external square structural design with a product weight of 2113 g. Built in accordance with EN 15081 and ISO 5211 norms, it includes a high-alloy stainless steel quick-coupling, disc, and screws, alongside a steel mounting adapter and RoHS-compliant materials. The unit provides an actuator outlet and a reducing outlet, both utilizing SW22 design with drilling pattern 10, while achieving a CRC rating of 2 for moderate corrosion stress and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote for this pack size 1 component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8084198
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8084198.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 15081 | ISO 5211
- Pack size
- 1
- Structural design
- Square drive and external square | Mounting kit
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Product weight
- 2113 g
- Connection 1, function
- Actuator outlet
- Connection 1, design
- SW22 | Drilling pattern 10
- Connection 2, function
- Reducing outlet
- Connection 2, design
- SW22 | Drilling pattern 10
- Note on materials
- RoHS compliant
- Quick-coupling material
- high-alloy stainless steel
- Mounting adapter material
- Steel
- Disc material
- high-alloy stainless steel
- Material of screws
- high-alloy stainless steel
