Festo
8084200

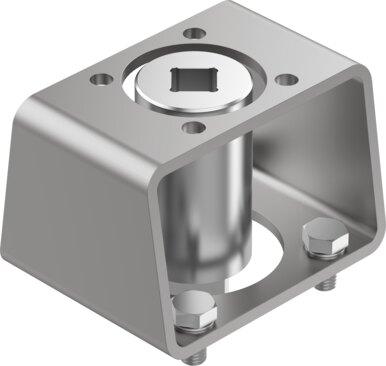

Mounting kit DARQ-K-V-F10S27-F07S17-R13
The Festo 8084200 is an industrial mounting kit adhering to EN 15081 and ISO 5211 norms, featuring a square drive and external square structural design with a product weight of 2116 g. Built with a steel mounting adapter alongside a high-alloy stainless steel quick-coupling, disc, and screws, this RoHS-compliant component provides a corrosion resistance class of CRC 2 and VDMA24364 Zone III LABS conformity. Connection 1 functions as an actuator outlet utilizing an SW27 design with drilling pattern 10, while Connection 2 serves as a reducing outlet featuring an SW17 design with hole pattern 07. Request a formal quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8084200
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8084200.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 15081 | ISO 5211
- Pack size
- 1
- Structural design
- Square drive and external square | Mounting kit
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Product weight
- 2116 g
- Connection 1, function
- Actuator outlet
- Connection 1, design
- SW27 | Drilling pattern 10
- Connection 2, function
- Reducing outlet
- Connection 2, design
- SW17 | Hole pattern 07
- Note on materials
- RoHS compliant
- Quick-coupling material
- high-alloy stainless steel
- Mounting adapter material
- Steel
- Disc material
- high-alloy stainless steel
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8084200. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
