Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

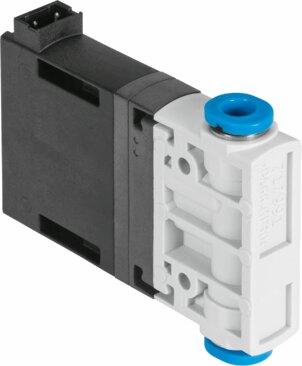

Reference imageConfirm configuration by manufacturer part number.
Festo
8084273
Air solenoid valve MHJ9-QS-4-MF/LP
The Festo 8084273 is a 9 mm wide, directly controlled 2/2-way closed monostable industrial component featuring a hard sealing principle and a poppet valve structural design without a return spring. It operates at 24V DC with an operating pressure range of 0.05 MPa to 0.4 MPa (0.5 bar to 4 bar / 7.25 psi to 58 psi), delivering a normal nominal flow rate of 100 l/min and a maximum switching frequency of 1000 Hz. This non-reversible component utilizes a pneumatic spring reset method, incorporates QS-4 pneumatic working ports, provides an IP40 degree of protection, and is rated for block assembly with flow at a maximum ambient temperature of 45 °C without operating without flow. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8084273
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8084273.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 9 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 100 l/min
- Pneumatic working port
- QS-4
- Operating voltage
- 24V DC
- Operating pressure
- 0.05 MPa...0.4 MPa | 0.5 bar...4 bar | 7.25 psi...58 psi
- Structural design
- Poppet valve without return spring
- Reset method
- Pneumatic spring
- Degree of protection
- IP40
- Width dimension
- 9.5 mm
- Information on operation
- Do not operate without ow. | For block assembly with ow rate at max. ambient temperature 45 °C.
- Sealing principle
- Hard
- Mounting position
- Any
- Manual override
- None
- Type of control
- directly
- Flow direction
- Non-reversible
- b-value
- 0.38
- C value
- 0.4 l/sbar
- Max. switching frequency
- 1000 Hz
- Switching time on at 4 bar and 24 V in new condition
- 0.8 ms
- Switching time off at 4 bar and 24 V in new condition
- 0.5 ms
- Switching time on at 4 bar and 48 V in new condition
- 0.6 ms
- Switching time off at 4 bar and 48 V in new condition
- 0.4 ms
- Switching time on at 4 bar and 12 V in new condition
- 1.1 ms
- Switching time off at 4 bar and 12 V in new condition
- 0.4 ms
- Switching time on at 0.5 bar and 24 V in new condition
- 0.7 ms
- Switching time off at 0.5 bar and 24 V in new condition
- 0.5 ms
- Tolerance for ON switching time
- +/-15%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8084273. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
