Festo
8084496

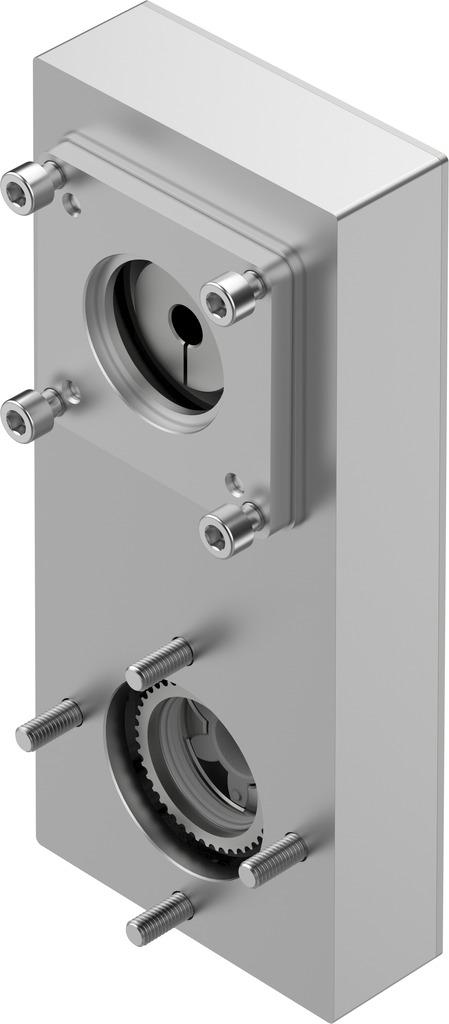

Parallel kit EAMM-U-87-T46-67A-114
The Festo part number 8084496 is an industrial component featuring a size 87 frame with a 114 mm center-to-center distance and a 1:1 gear ratio. This RoHS-compliant unit operates with a maximum rotational speed of 3000 1/min, a transferable torque of 3 Nm, a no-load driving torque of 0.22 Nm, and a mass moment of inertia of 41.2 kgmm², while weighing 966 g with an IP40 degree of protection, VDMA24364 zone III LABS conformity, and an actuator interface code T46 with a motor input interface code 67A. It functions in any mounting position across an ambient temperature range of 0 °C to 50 °C, a storage temperature range of -20 °C to 60 °C, and a relative air humidity of 0 to 95%. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8084496
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8084496.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 87
- Center-to-center distance
- 114 mm
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 3000 1/min
- LABS (PWIS) conformity
- VDMA24364 zone III
- Storage temperature
- -20 °C...60 °C
- Relative air humidity
- 0 - 95 %
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Mass moment of inertia
- 41.2 kgmm²
- No-load driving torque
- 0.22 Nm
- Transferable torque
- 3 Nm
- Product weight
- 966 g
- Interface code, actuator
- T46
- Interface code, motor in
- 67A
- Note on materials
- RoHS-compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8084496. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
